Schiit Audio Jotunheim Balanced Headphone Amplifier Silver

Schiit Audio Jotunheim Balanced Headphone Amplifier

Name: Schiit Audio Jotunheim Balanced Headphone Amplifier
Brand: Schiit Audio
SKU: SA.JOTUNHEIM
Price: 399.0 AUD
Availability: InStock
Rating: 5.0 (3 reviews)

Save $320

Schiit AudioSKU: SA.JOTUNHEIM

Price:

$399 $719

*Check with our team or your local store for availability.

We guarantee that all of our stock is 100% genuine,
Australian sourced stock, with full local warranty.

Also note:

the box is opened to track the serial number, as Schiit does not have this on the outside of the box.

You asked for it—a one-box, do-all, no-excuses desktop system that’s ready for any headphone and powered monitor on the planet. Done. At the same time, why don’t we make the conventional, non-upgradable DAC/amp idea seem, well, a bit outdated? Done and done. Welcome to Jotunheim!

DAC/Amps: They’re Sooooo Last Decade Don’t get stuck with dumpster fodder when DAC technology changes—choose Jotunheim and be ready for today…and the future. Configure Jotunheim to your needs: use it as just an amp, or add an internal DAC or phono preamp. In the future, you’ll be able to easily upgrade to a different module—maybe even something beyond a DAC or phono preamp.

Ready For Any Headphone IEMs? Sure. HE-6? Sure. If this means nothing to you, just be confident that you can plug any headphone into Jotunheim and get great sound, with ultimate power and authority. Balanced or single-ended—it doesn’t matter. With 5W output into 32 ohms from the balanced outputs, Jotunheim has tons of power to spare. Ready for Any Powered Monitor or Power Amp Balanced and single-ended preamp outs mean that Jotunheim is ready for any powered desktop monitor—or to plug into those gigadollar monoblocks you’ve been eyeing. Unrivaled Flexibility Select high or low gain with the flick of a front-panel switch, for compatibility with both easy-to-drive and hard-to-drive headphones. Select balanced input, single-ended input, and an optional DAC, phono, or input module: By “made in USA,” we mean made in USA. The vast majority of the total production cost of Jotunheim—chassis, boards, assembly, etc—goes to US companies manufacturing in the US. 5-Year Warranty.

Jotunheim's unique Pivot Point gain stage provides excellent performance from all inputs and outputs

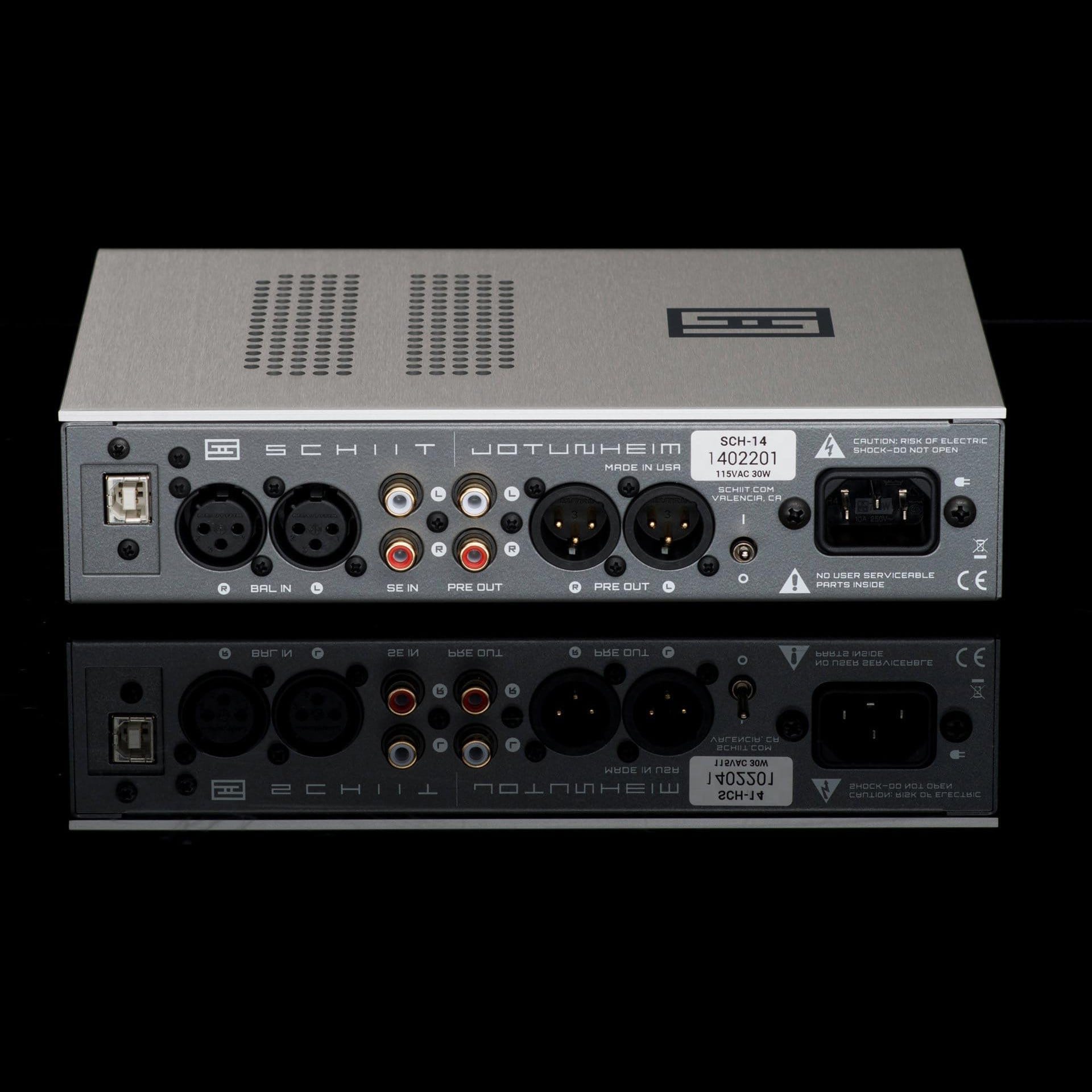

Balanced and single-ended preamp outs for use with any powered desktop speakers or power amps

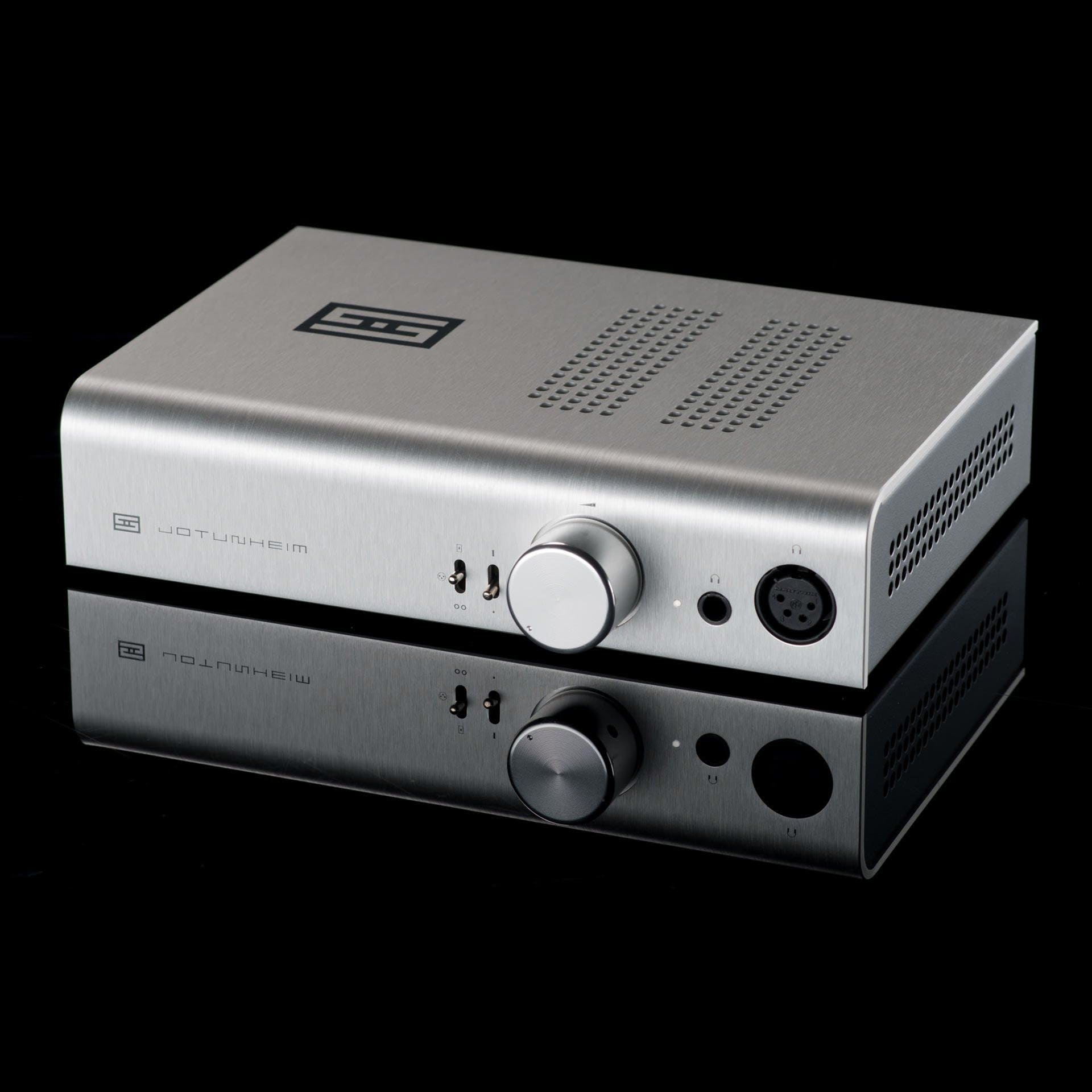

Select high or low gain for compatibility with both easy-to-drive and hard-to-drive headphones.
5W output into 32 ohms from the balanced outputs
Just the headphone amp and preamp
Designed and Built in California

Frequency Response	20Hz-20Khz, -0.1db, 2Hz-700KHz, -3dB
Balanced Headphone Output
Maximum Power	16 ohms: 7500mW RMS per channel
Maximum Power	32 ohms: 5000mW RMS per channel
Maximum Power	50 ohms: 3000mW RMS per channel
Maximum Power	300 ohms: 900mW RMS per channel
Maximum Power	600 ohms: 500mW RMS per channel
Single-Ended Headphone Output
Maximum Power	16 ohms: 2500mW RMS per channel
Maximum Power	32 ohms: 1500mW RMS per channel
Maximum Power	50 ohms: 800mW RMS per channel
Maximum Power	300 ohms: 350mW RMS per channel
Maximum Power	600 ohms: 175mW RMS per channel
General Specifications
THD	<0.001%, 20Hz-20KHz, at 1V RMS
IMD	<0.0015%, CCIR
SNR	>109db, A-weighted, referenced to 1V RMS
Crosstalk	>-70dB, 20 Hz-20KHz
Output Impedance	Less than 0.1 ohms, balanced or SE, at both gain settings
Input Impedance	50K ohms
Gain	2 (6dB) or 8 (18dB), selectable via front switch
Inputs	Balanced XLR and Single-Ended RCA, selectable via front switch
Outputs	Balanced headphone (4-pin XLR), single-ended headphone (1/4” TRS), balanced line preamp, single-ended line preamp

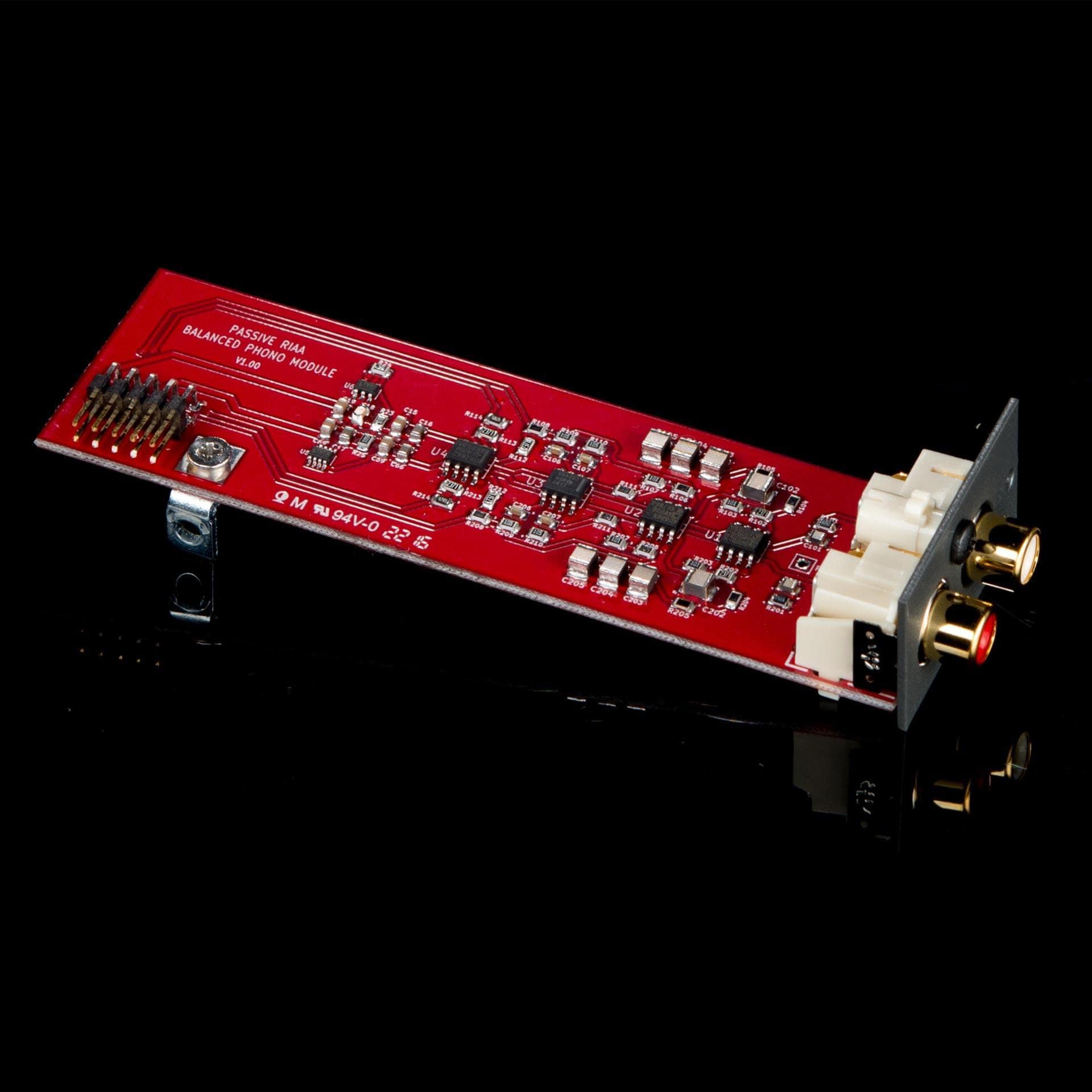

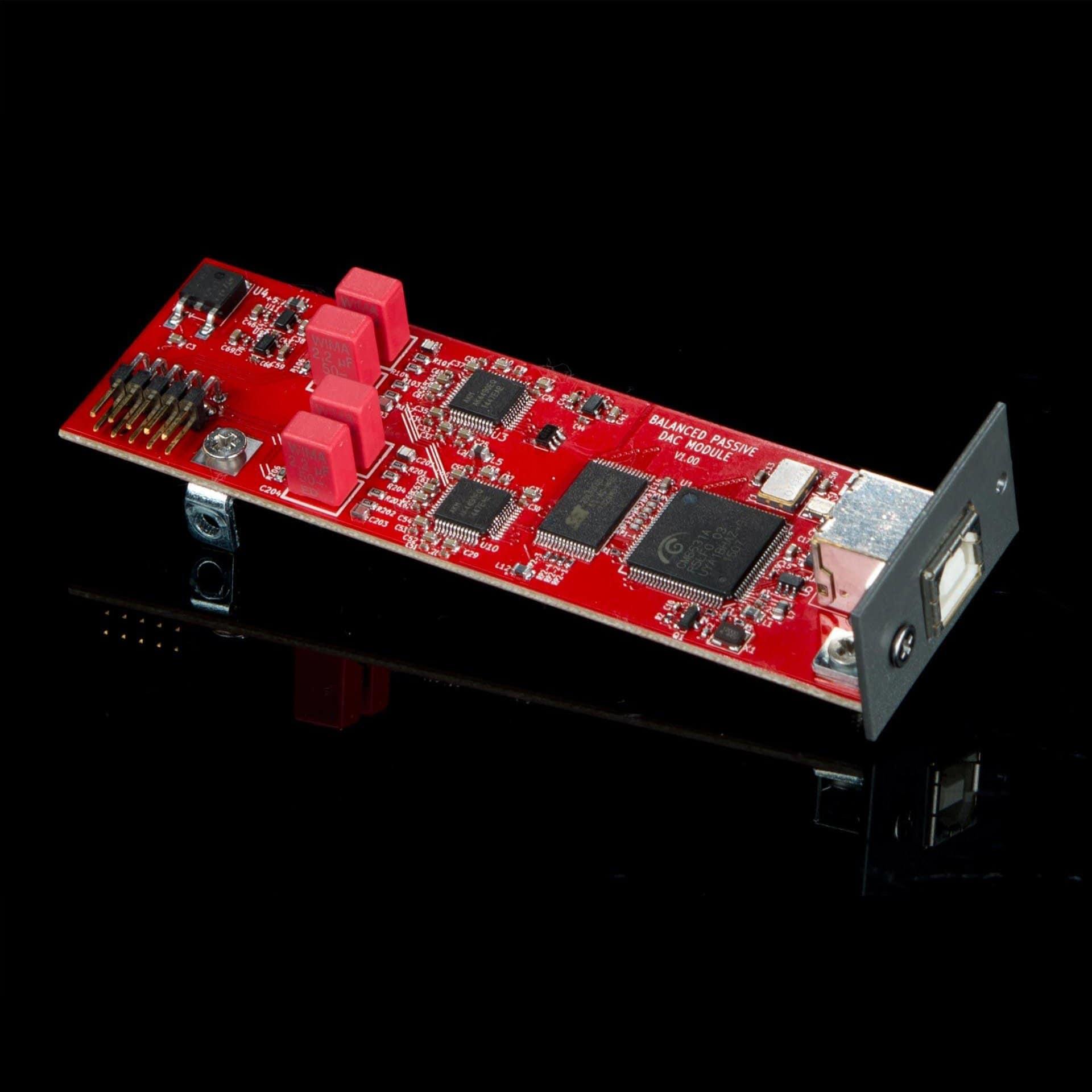

Optional Inputs	Multibit DAC, AK4490 DAC, or Passive MM Phono
Gain Stage	Proprietary Schiit Pivot Point™ fully discrete differential current-feedback topology

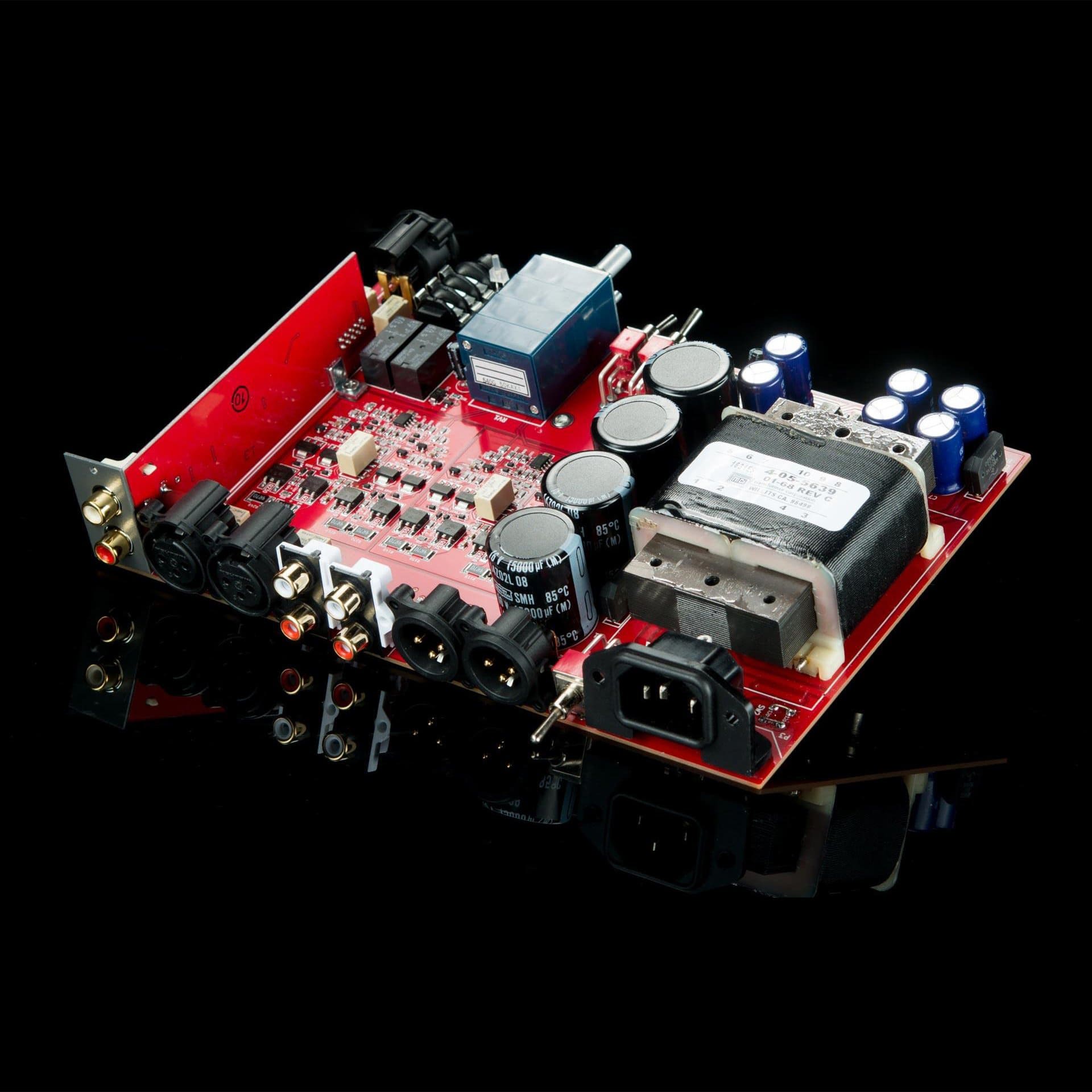

Power Supply	One 48VA transformer with 6 stages of discrete or integrated regulation and over 70,000uF total filter capacitance
Power Consumption	25W typical
Size	9” x 6” x 2”
Weight	6 lbs

Schiit Audio Jotunheim Amplifier
Power cord

Schiit Audio Jotunheim Amplifier User Manual
