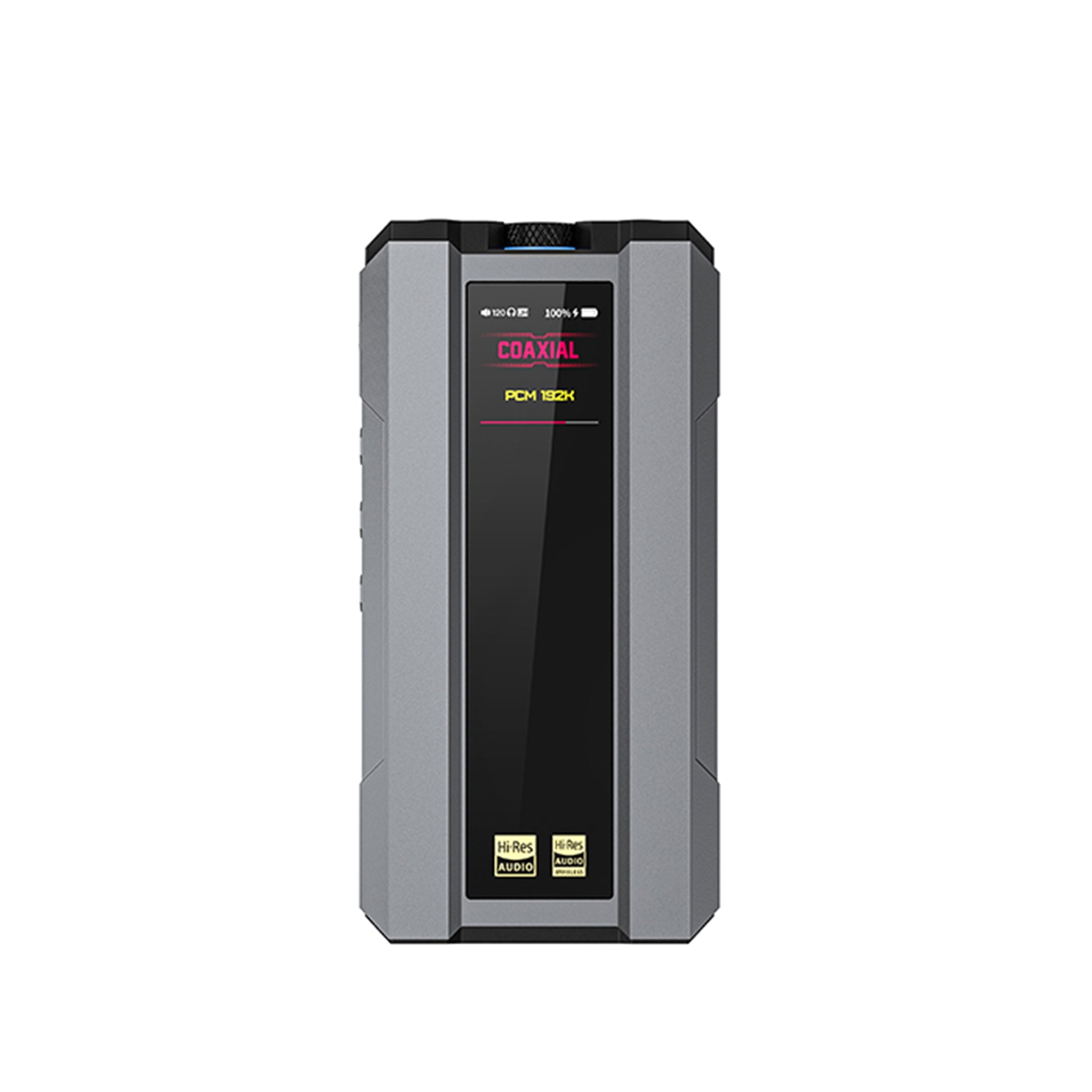

FiiO Q15 Portable DAC & Headphone Amplifier

FiiO Q15 Portable DAC & Headphone Amplifier

Name: FiiO Q15 Portable DAC & Headphone Amplifier
Brand: FiiO
SKU: 5510194
Price: 680.0 AUD
Availability: InStock

FiiO

Price:

$680

*Check with our team or your local store for availability.

We guarantee that all of our stock is 100% genuine,
Australian sourced stock, with full local warranty.

Share this product

Portable desktop-grade machine - Q15

The Q15 features a new desktop mode, sporting a separate Type-C power connector for it. When the Q15 is connected to the PD power adapter, the Q15 will be powered externally completely bypassing the battery, allowing for a desktop-like experience even on the go.

1600mW of astonishing power Rivaling desktop amps

When put in Desktop Mode, the Q15 under balanced output is capable of putting out 1600MW in enhanced over-ear headphone mode, which is more than enough to easily drive vanous IEMs and full-size headphones.

USB/Bluetooth/coaxial decoding Useful everywhere

The Q15 packs USB DAC, Bluetooth, coaxial decoding and other modes all into one device, making it easier for you to connect various kinds of devices for different usage scenarios.

USB: Connect to computers/phones/tablets/game consoles and other devices, supporting up to 768kHz/32bit PCM and DSD512

Bluetooth: Connect to phones/tablets/digital audio players and other devices, supporting high-res Bluetooth codecs including LDAC/aptX Adaptive

Coaxial: Connect to CDs/digital streamers/digital audio players/receivers and other devices, supporting up to 192kHz/24bit PCM and DSD64

AKM flagship DAC combo | AK4191EQ+AK4499EX

The Q15 features AKM's newest DAC combination - the AK4191EQ+AK4499EX. When working in tandem with the newly developed "DWA Routing Technology", audio performance is greatly improved. The result is a more detailed, yet natural and realistic sound that makes the listener think they have been transported to the concert site.

Self-developed digital cores Stable and efficient operation

Featuring digital components on the same level as those of the FIIO Q7, the Q15 relies on the ARM processor to realize USB/coaxial/Bluetooth decoding in one, capable of processingdigital audio signals with low latency and high efficiency. Featuring digital components on the same level as those of the FIIO Q7, the Q15 relies on the ARM processor to realize USB/coaxial/Bluetooth decoding in one, capable of processingdigital audio signals with low latency and high efficiency.

XMOS 16-core XU316

Supports 768kHz/32bit PCM, DSD512 and MQA full decoding

TI Cortex M4 processor

Ensures stable and efficient operation of various systems

Dual audio crystal crystal oscillators, asynchronous/self-adaptive dual mode management

Adapt to various sound sources and sampling rates accurately and stably

Full-color IPS display | Visually pleasant control

The full-color IPS display makes it easier for you to see the current status of the device, such as the current sampling rate, volume, gain, and other information. Helping you to both adjust the volume and easily navigate through the settings is an intuitive volume knob.

Digital and analog shielded partitions

The digital and analog portions of the audio circuit are separated and shielded from each other to reduce crosstalk between the two portions and to protect against external interference.

Desktop/portable dual power supply modes
1600mW high output power
Bluetooth/USB/coaxial decoding
High-end QCC5125+XU316
Global PEQ
AKM flagship DAC combo AK4191EQ+AK4499EX
Full-color IPS display
5-level audio circuit
Comprehensive protection

FiiO Q15 Portable DAC & Headphone Amplifier Specifications
General Specifications
Name/Model	Q15	Hardware solution	DAC: AK4191EQ+AK4499EX USB: XMOS XU316 Bluetooth decoding: QCC5125
Color	Black/ Titanium	Volume control	Volume knob
Weight	About 305g	Dimensions	About 143.5x71.75x21.75mm
MQA	Supports MQA Full Decoder	Driver-free mode (switch mode)	Supported
Gain	Ultra High (In Desktop mode, Power in port connected with QC power) /Super High/High/Medium/Low gain mode	Display	1.30-inch TFT (240*240) ;bezel-less display;
FiiO Control	Supports settings through app	Status display	On the display: Bluetooth codec, sampling rate, charging status, battery level, volume level, input source, gain level, power mode
Sampling rate display	Cyan: 44.1kHz/48kHz Yellow: 88.2/96/176/352.8/384/705.6/768kHz Green: DSD64/128/256/512 Purple: MQA	Bluetooth codec display	Blue: SBC Cyan: AAC Purple: aptX/aptX LL Yellow: aptX HD White: LDAC Green: aptX Adaptive
Channel balance	;0.2dB	Bluetooth reception (5.1);	AAC/SBC/aptX/aptX LL/ aptX Adaptive/aptX HD/LDAC
Max. sampling rate	USB DAC: Up to PCM 768kHz/32bit, native DSD512	Firmware upgrade	Bluetooth firmware supports upgrade through OTA
Max. sampling rate	Coaxial decoding: Up to PCM 192kHz/24bit, DoP DSD64	Firmware upgrade	XMOS/system firmware supports upgrade through USB
Recommended impedance	PO:8~150Ω BAL:8~350Ω	;	;
Buttons and Ports
Buttons	Power button1, Play/Pause1, Previous track1, Next track1, Encoder knob (with confirm button) *1	USB	Type-C USB2.0*2 ;Black USB (charging/data transfer), orange POWER IN (charging);
Headphone output	Standard 3.5mm port	BAL headphone output	Standard 4.4mm port
Line-out output	;Standard 3.5mm port (shared PO)	BAL Line-out output	Standard 4.4mm port (shared 4.4mm BAL headphone out)
Digital coaxial input	RCA port	Toggle switch	PHONE MODE switch1；DESKTOP MODE switch1
Power Supply Parameters
Power supply	Supports PD fast charging and ordinary charging	Battery capacity	5500mAh lithium polymer battery
charging time	About 3.5h (PD fast charge);
Battery life and test conditions
3.5mm headphone out: ≥9h
Audio input	USB decoding/coaxial decoding	Gain level	Super High Gain mode
Volume level	L40	Playing track and format	MP3 44.1KHz/16bit
Display status	OFF	Charging switch	OFF
Load	32 Ω
4.4mm BAL headphone out: ≥8h
Audio input	USB decoding/coaxial decoding	Gain level	BSuper High Gain mode
Volume level	L 34	Playing track and format	MP3 44.1KHz/16bit
Display status	OFF	Charging switch	OFF
load	32 Ω
3.5mm headphone out: ≥9h;
Audio input	Bluetooth	Bluetooth codec	AAC
Volume level	L 40	Gain level	Super High Gain mode
Display status	OFF	Playing track and format	MP3 44.1KHz/16bit
BASS/EQ	OFF	Load	32 Ω
4.4mm BAL headphone out: ≥8h
Audio input	Bluetooth	Bluetooth codec	AAC
Volume level	L 34	Gain level	Super High Gain mode
Display status	OFF	Playing track and format	MP3 44.1KHz/16bit
BASS/EQ	OFF	Load	32 Ω
Audio Parameters
Parts of performance and parameters of headphone output (3.5mm out, USB DAC/Coaxial decoding, Ultra High Gain mode);
Output power	L+R≥750mW+750mW (16Ω, THD+N＜1%);	Output impedance	;1Ω
	L+R≥625mW+625mW (32Ω, THD+N＜1%);	Crosstalk	≥ 72dB
	L+R≥85mW+85mW (300Ω,THD+N;1%)	peak output voltage	14.5Vp-p
SNR	≥ 123dB (A-weighted)	THD+N; Noise	;0.0005%(1kHz/-9dB @ 32Ω)
Frequency response	20Hz~80kHz: damping＜3dB	THD+N; Noise	;0.0004%(1kHz/-6dB @ 300 Ω)
Frequency response	20Hz~20kHz: damping＜0.1dB	Noise floor	＜3.1uV (A-weighted);
Parts of performance and parameters of headphone output (3.5mm out, USB DAC/Coaxial decoding, Super High Gain mode);
Output power	L+R≥520mW+520mW (16Ω,THD+N;1%)	Output impedance	;1Ω
	L+R≥400mW+400mW (32Ω,THD+N;1%)	Crosstalk	≥ 72dB
	L+R≥55mW+55mW (300Ω,THD+N;1%)	Peak output voltage	11.5Vp-p
SNR	≥ 121dB (A-weighted)	THD+N ; Noise	;0.00045%(1kHz/-7dB @ 32Ω)
Frequency response	20Hz~80kHz: damping＜3dB	THD+N ; Noise	;0.0004%(1kHz/-4dB @ 300 Ω)
Frequency response	20Hz~20kHz: damping＜0.1dB	Noise floor	＜3uV (A-weighted);
Parts of performance and parameters of Line-out headphone output (3.5mm out, USB/DAC/Coaxial decoding);
THD+N ; Noise	;0.00042%(1kHz/-4dB @ 10KΩ)	SNR	≥ 123dB (A-weighted)
Crosstalk	≥ 105dB	Noise floor	＜1.6uV (A-weighted);
Frequency response	20Hz~80kHz: damping＜3dB	Line output level	2Vrms
Frequency response	20Hz~20kHz: damping＜0.1dB	;	;
Parts of performance and parameters of BAL headphone output (4.4mm out, USB DAC/Coaxial decoding, Ultra High Gain mode);
Output power	L+R≥635mW+635mW (16Ω,THD+N;1%)	Output impedance	;1.5Ω
	L+R≥1610mW+1610mW (32Ω,THD+N;1%)	Crosstalk	≥ 113dB
	L+R≥340mW+340mW (300Ω,THD+N;1%)	Peak output voltage	29Vp-p
SNR	≥ 123dB (A-weighted)	THD+N ; Noise	;0.00055%(1kHz/-14dB @ 32Ω)
Frequency response	20Hz~80kHz: damping＜3dB	THD+N ; Noise	;0.0003%(1kHz/-2dB @ 300 Ω)
Frequency response	20Hz~20kHz: damping＜0.1dB	Noise floor	＜4.8uV (A-weighted);
Parts of performance and parameters of BAL headphone output (4.4mm out, USB DAC/Coaxial decoding, Super High Gain mode);
Output power	L+R≥675mW+675mW (16Ω,THD+N;1%)	Output impedance	;1.5Ω
	L+R≥1060mW+1060mW (32Ω,THD+N;1%)	Crosstalk	≥ 113dB
	L+R≥215mW+215mW (300Ω,THD+N;1%)	Peak output voltage	23Vp-p
SNR	≥ 121dB (A-weighted)	THD+N ; Noise	;0.00055%(1kHz/-13dB @ 32Ω)
Frequency response	20Hz~80kHz: damping＜3dB	THD+N ; Noise	;0.00025%(1kHz/-4.5dB@300Ω)
Frequency response	20Hz~20kHz: damping＜0.1dB	Noise floor	＜4.8uV (A-weighted)
balanced line headphone output part performance parameters (4.4mm output, USB DAC/coaxial decoding)
THD+N ; Noise	;0.00027%(1kHz/-5dB @ 10KΩ)	SNR	≥ 126dB (A-weighted)
Crosstalk	≥ 105dB	Noise floor	＜1.8uV (A-weighted);
Frequency response	20Hz~80kHz: damping＜3dB	Line output level	4Vrms
Frequency response	20Hz~20kHz: damping＜0.1dB	;

1 x Q15
1 x Dual Type-C fast charging data cable
1 x Dual Type-C short data cable
1 x Type A-C adapter
1 x Storage bag
1 x Silicone pad
1 x PE film (pre-applied)
1 x Silicone ring
1 x Manual
1 x Warranty card
