RC-UE2B
A tiny difference for a big Appearance. Replacement cable for balanced earphones
Calling All Balanced Output Enthusiasts

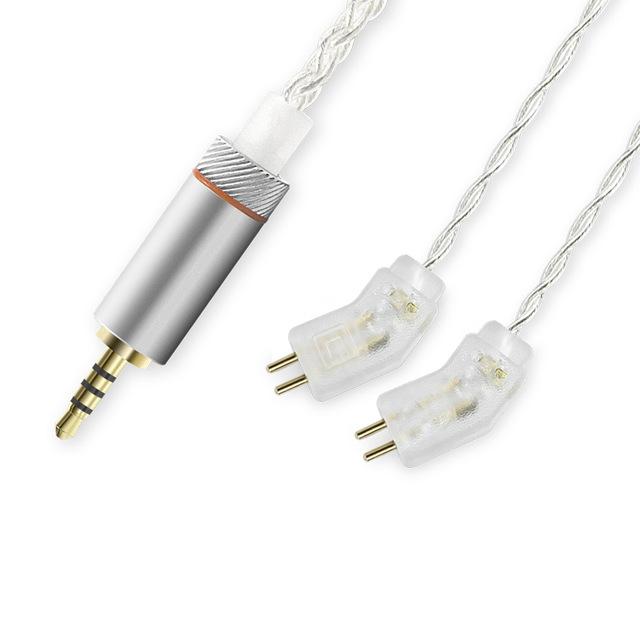

Based on RC-UE2,the new RC-UE2B swaps the 3.5mm jack out for a 2.5mm 4-pole plug.With its separate Left/Right channel wires and separate +/- signal transfer,the RC-UE2B enables balanced operation for your earphones.When connected to a balanced headphone amplifier (such as the FiiO AM3),RC-UE2B can greatly enhance channel separation as well as markedly increase the signal to noise ratio.This results in a wider sound stage and more controlled,textured bass - perfect for balanced output enthusiasts.
A Little Extra Transparency makes for A Lot More Individuality
From the plug joint,to the Y splitter,to the earphone-side connector,the new RC-UE2B is wrapped with transparent polycarbonate to separate itself from the unicolor cable.Not only does this striking visual element give your earphones some character,it naturally also invites you to take a closer look with its revealing view of the insides.
Stunning Looks backed by Impressive Internals
The RC-UE2B adopts Teflon*FEP(fluorinated ethylene propylene) for the sheath and silver-plated copper as the conductor.11 strands of silver-plated copper wires (each with a diameter>0.08mm) make up each of the 8 separate cables,which are all woven into one audio cable with separate wires for the Left/Right channels.Both the straight 2.5mm plug and the coaxial type MMCX connector (with a 2.4mm diameter) are made of gold-plated copper.These premium choices of materials ensure the RC-UE2B is a high quality cable that is highly elastic,tough against scrapes,and resistant to aging.
Boundless Compatibility
It is compatible to Fi 10 (Pro) / Super,Fi 5 Pro / Super.Fi 3 Studio M-AUDIO IE-40 / IE-30 / IE-20XB / IE-10 / FLC8 Series / Customized FLC Series.
Specification
Length: 120cm (excluding the plug)
Diameter of conductor: 26AWG (φ0.4mm)
Diameter of conductor including outer skin: φ0.6mm
Diameter of cable: φ2.5mm
Impedance of single channel for headphone cable: 0.16Ω(1.2m)
Suitable temperature: -80-200℃
High pressure resistance: 150V
Diameter of contact pin: 0.75mm
