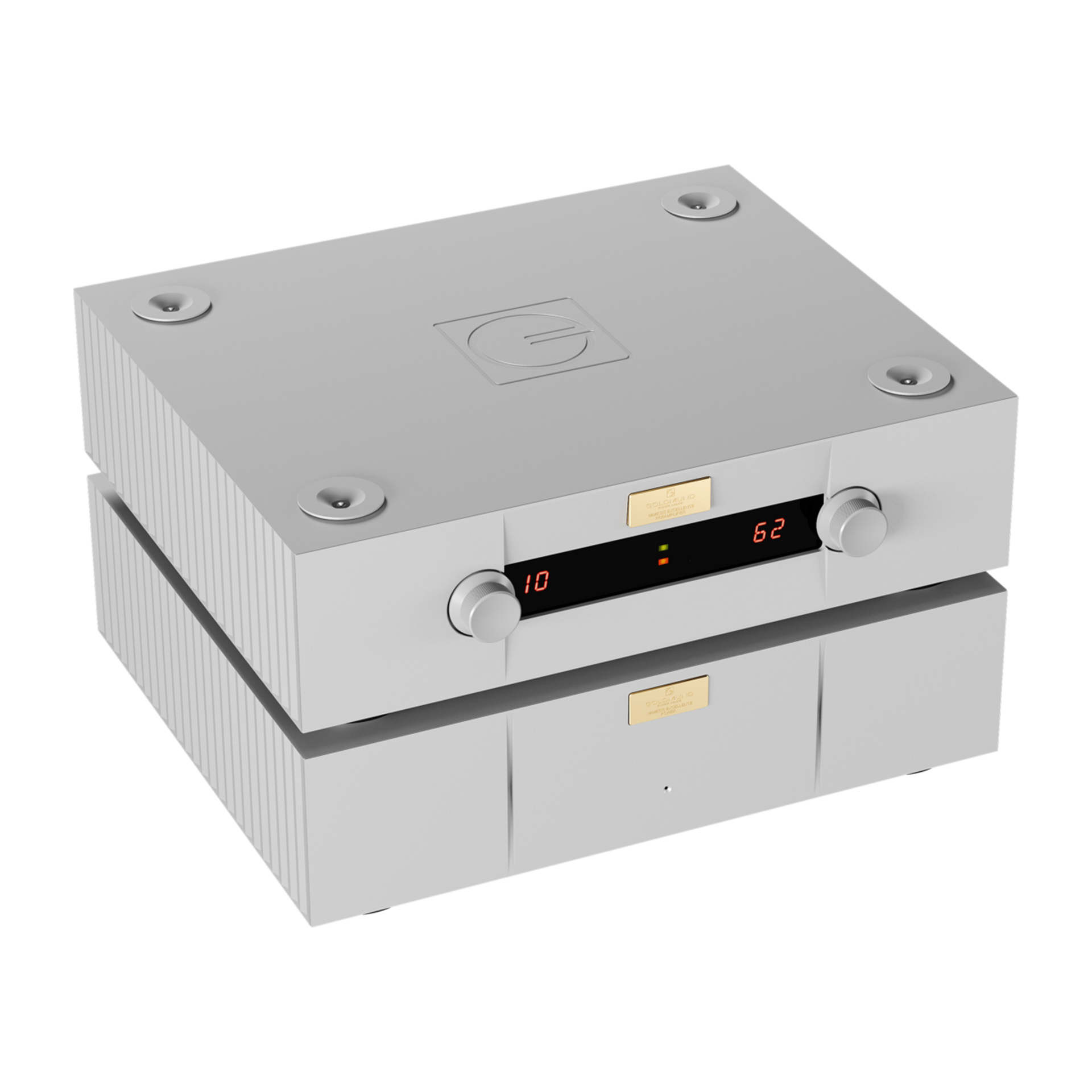

Goldmund MIMESIS EXCELLENCE Digital / Analog Pre Amplifier

GoldmundSKU: GM.MIMESISEXC.SL

Price:
$114,999
*Check with our team or your local store for availability.
We guarantee that all of our stock is 100% genuine,
Australian sourced stock, with full local warranty.
afterpay
afterpay

Description

  • Independent Audio Channels with Dedicated DACs: Each left and right channel has its own dedicated audio card, equipped with a state-of-the-art DAC and volume control for optimal sound purity and independent processing.
  • Themis Audio Board: Innovative audio board with mechanical shielding to block electromagnetic emissions and a precise volume controller, ensuring minimized noise and enhanced audio fidelity.
  • High-Performance Customized DAC: Capable of decoding up to DSD 512, with low noise and distortion, supported by a fully customized clock generation system for minimal jitter.
  • Separate Digital/Analog Power Supplies: Fully separated and customized power supplies with dual-stage regulation and high-end transformers for maximum operational stability and refined audio performance.
  • Superior Audio Specifications: Achieves an SNR over 130 dB, frequency response up to 530 kHz, and low total harmonic distortion for crystal-clear sound reproduction that preserves the original recording's quality.
Goldmund MIMESIS EXCELLENCE Digital / Analog Pre Amplifier Specifications
Device Size & Weight
Preamplifier (without power cord) 44 W x 13.1 H x 40 D (cm) / 17.3 W x 5.16 H x 15.8 D (inch), 11.5 Kg
Power Supply (without power cord) 44 W x 13.1 H x 38.6 D (cm) / 17.3 W x 5.16 H x 15.2 D (inch), 13 Kg
Packaging Size & Weight (Gross)
Dimensions 46 W x 40 H x 58 D (cm) / 18.1 W x 15.8 H x 22.9 D (inch)
Weight 14 Kg
Inputs
Input Impedance 51 kOhms
Maximum Input Level (Balanced) 19.2 Vrms
Maximum Input Level (Unbalanced) 10.3 Vrms
Outputs
Output Impedance 75 Ohms
Maximum Output Level (Balanced) 20 Vrms
Maximum Output Level (Unbalanced) 10 Vrms
Frequency Response
20 – 20 kHz +/- 0 dB
0.2 – 530 kHz +/- 3 dB
Distortion
THD Unbalanced Input to Unbalanced Output 0.0006% (flat with frequency)
THD Balanced Input to Balanced Output 0.0004% (flat with frequency)
THD Unbalanced Digital Input to Unbalanced Output 0.00085% (-6dBFS) flat with frequency
Speed
Slew Rate 15 V/us
Crosstalk
Separation > 85 dB (20 Hz – 20 kHz)
Noise
Signal-to-Noise Ratio > 130 dB (0.01 Hz - 10 MHz); Weighted ASA A: > 140 dB
Operating Temperature
Room Temperature -30 to +40 degrees Celsius
Internal Temperature +45 to +70 degrees Celsius
Power
Nominal Line Voltage 115 or 230 V
Input Voltage Range +/-15%
Maximum Power Consumption 20 W
Grounding
Ground Separated ground and earth signal
Front Panel Controls

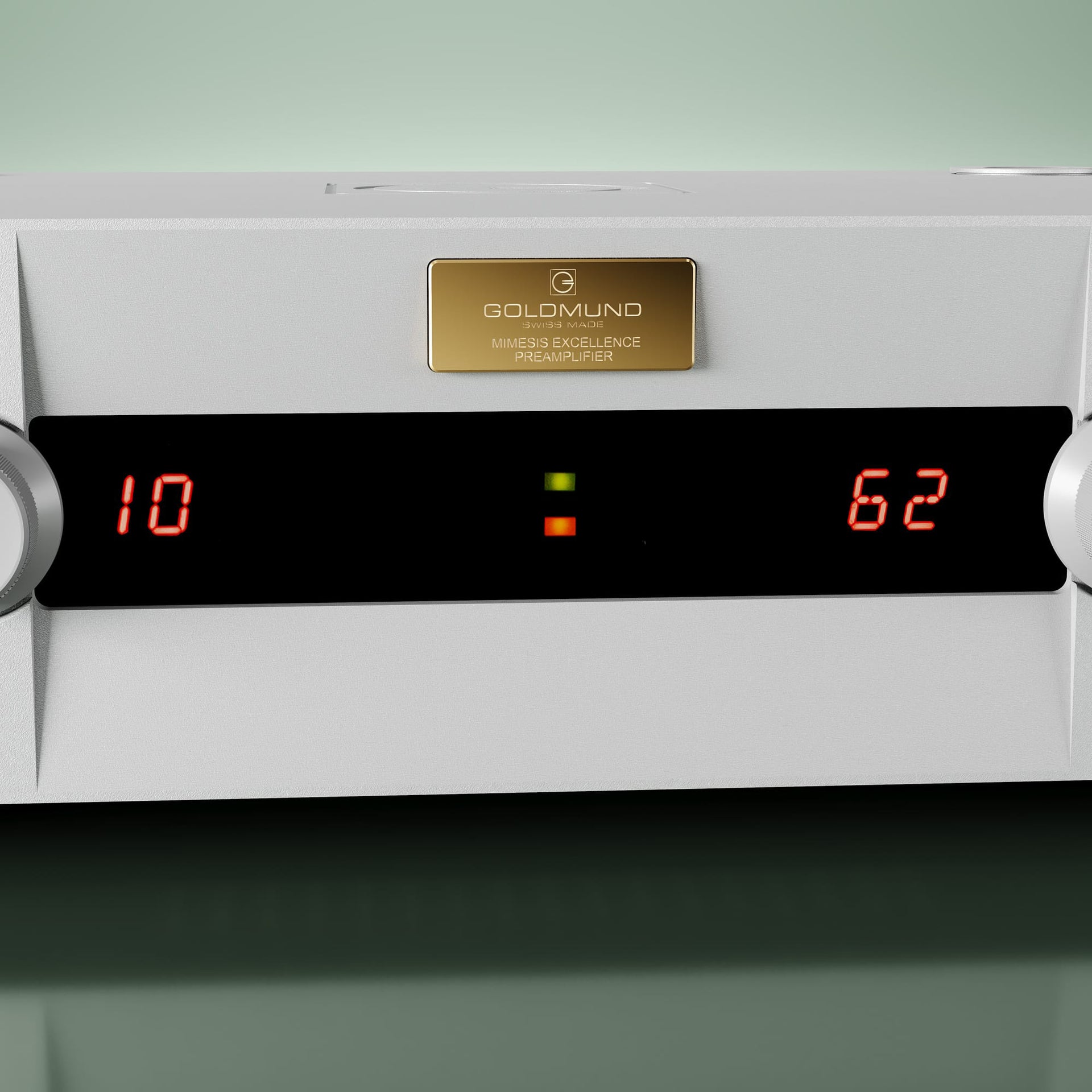

Controls VOLUME, BALANCE, MUTE & STANDBY, VOLUME MEMO

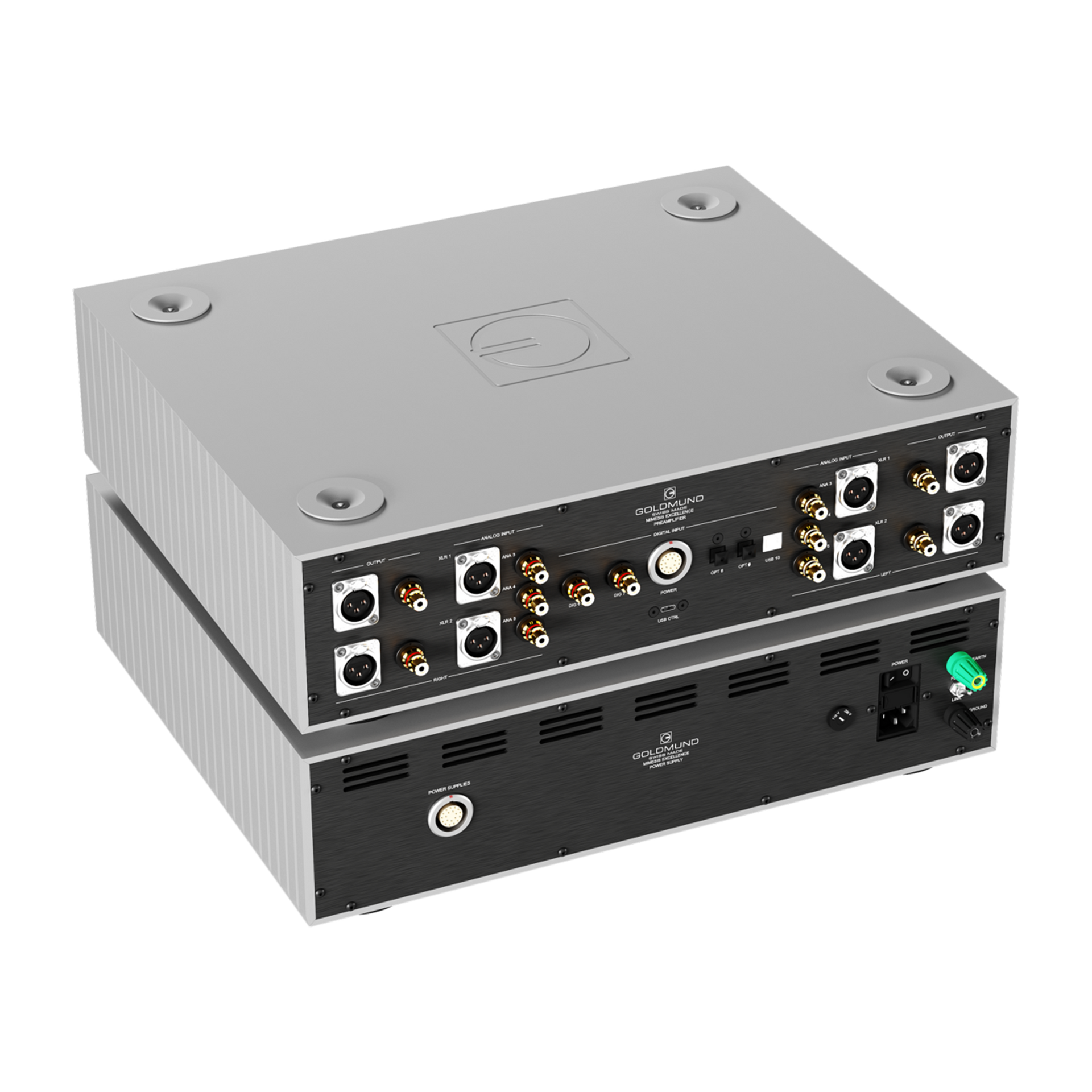

Rear Panel Connectors & Controls
Power Connector Yes
Analog RCA Input Connectors 3 pairs (right and left)
Analog XLR Input Connectors 2 pairs (right and left)
S/PDIF Digital RCA Input Connectors 2
Optical Digital RCA Input Connectors 2
RCA Output Connectors 2 pairs (right and left)
XLR Output Connectors 2 pairs (right and left)
Power Supply Controls
Power Cord Socket 3 lugs
Main Fuse 1 A slow-blow
Voltage Selector 115/230 V
Earthing Post Yellow-green
  • 1 x MIMESIS EXCELLENCE Digital / Analog Pre Amplifier
  • 1 x MIMESIS EXCELLENCE Power Supply Unit
  • 1 x Preamplifier to Power Supply cable

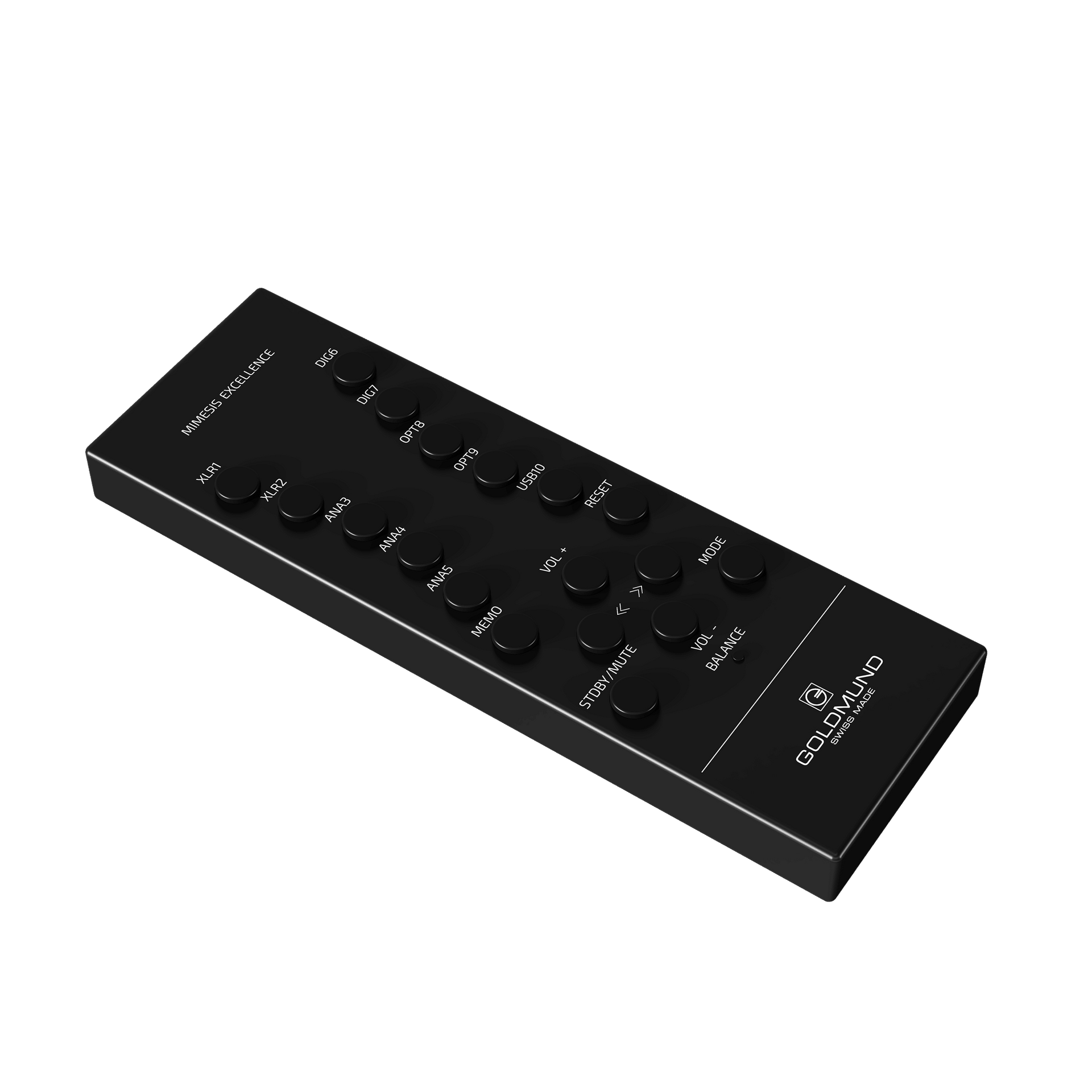

  • 1 x Remote control and batteries
  • 1 x Power Cord
  • 1 x Manual
  • 3 years
