Price:
$3,899
*Check with our team or your local store for availability.
We guarantee that all of our stock is 100% genuine,
Australian sourced stock, with full local warranty.
Australian sourced stock, with full local warranty.
Description

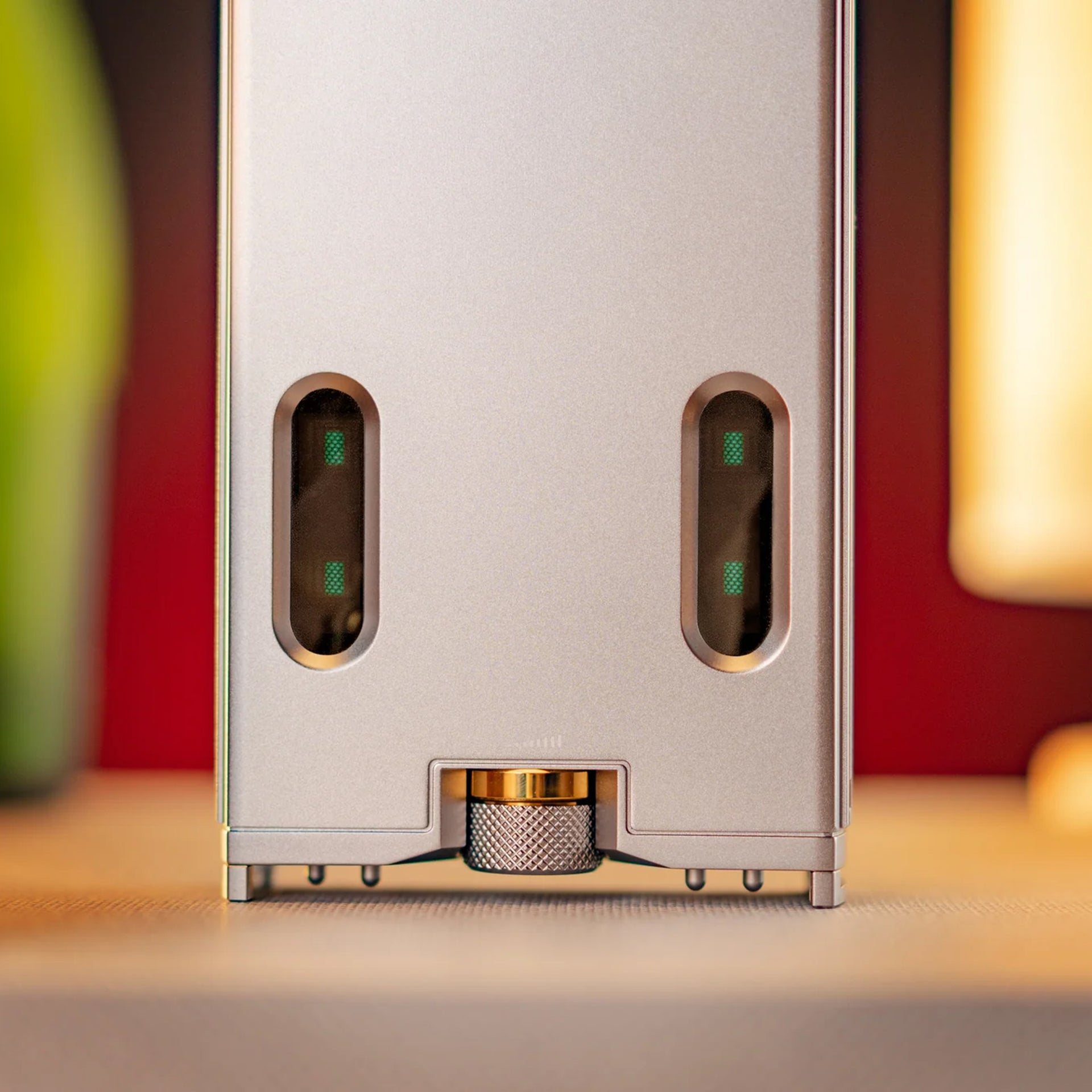

- The Gen5 NuTube 6P1 technology in the Cayin C9ii offers adjustable tube sound with high and low voltage settings, allowing users to customize the sound signature.
- The Dual Tube Sound system provides two modes: Classic mode delivers a rich, warm tube sound, while Modern mode offers a cleaner and more detailed sound with less distortion.

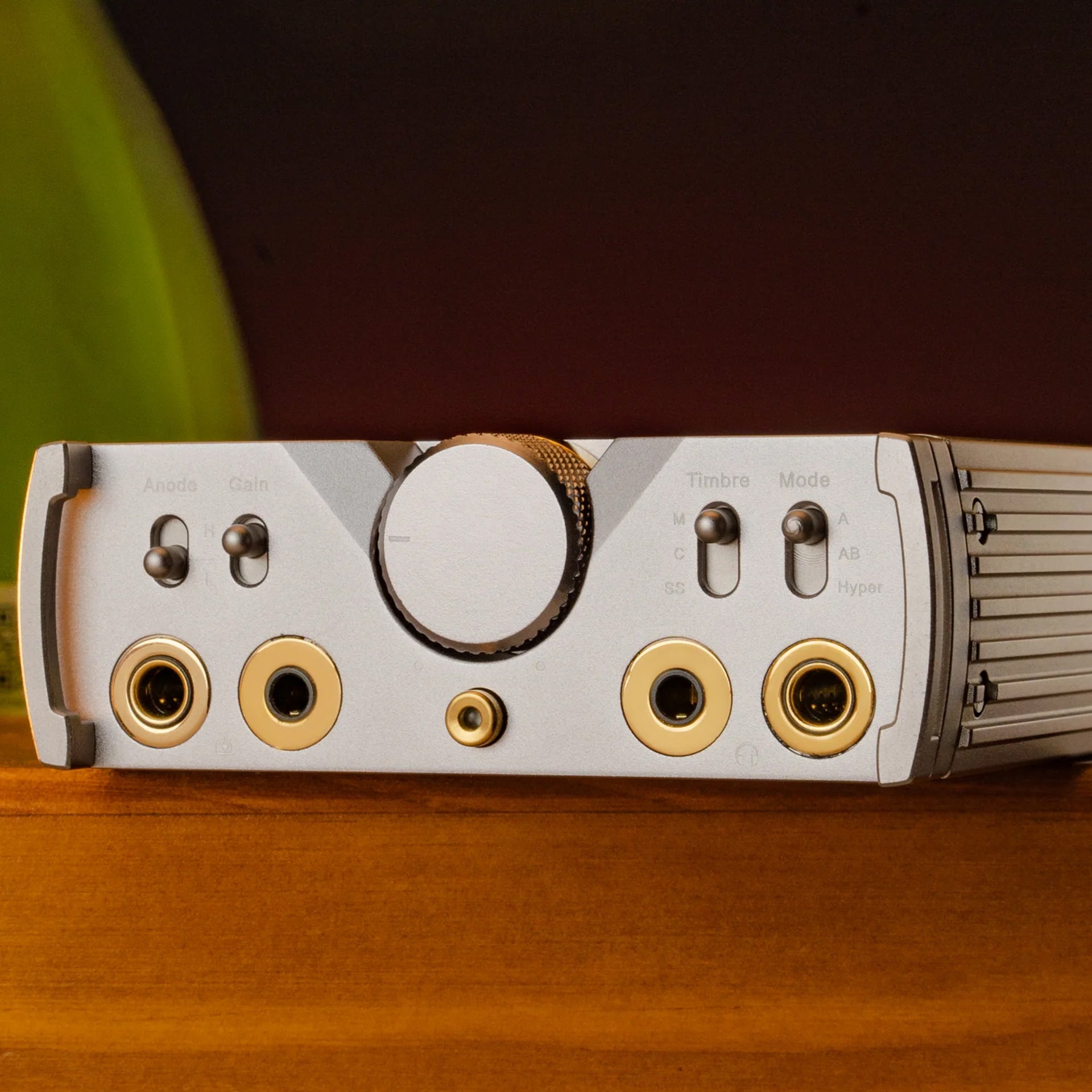

- The Anode Modes further refine the tube sound, with the ability to shift between a deep, rich tube sound or a more balanced, minimal tube effect depending on your preference.
- In Solid-State Mode, the amplifier provides a neutral and balanced sound without any tube coloration, appealing to listeners who prefer a pure, unaltered sound signature.
- The amplifier features a fully symmetric design, ensuring high-quality and clear amplification through its three-stage circuit, enhancing the overall audio performance.

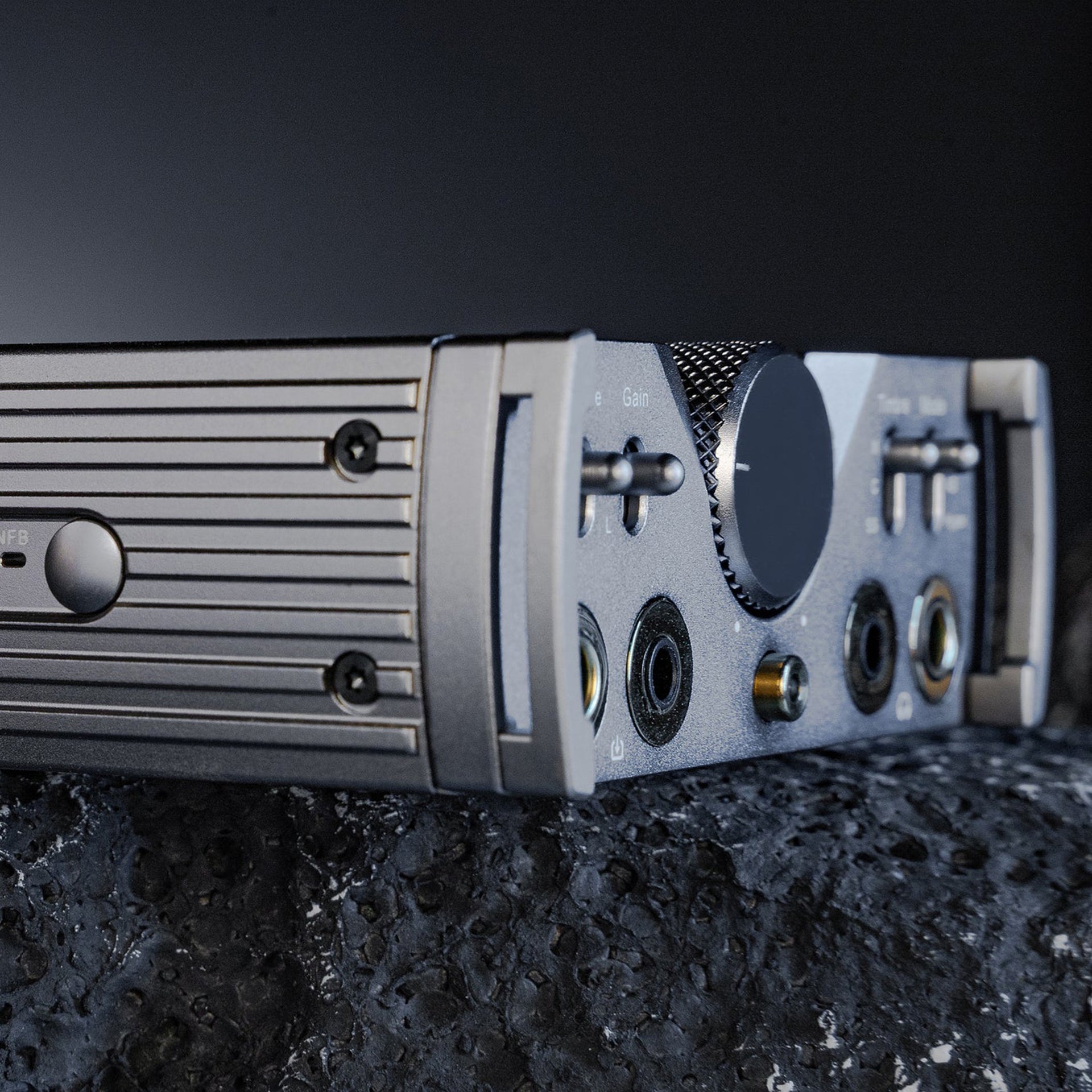

- The Negative Feedback (NFB) system allows users to switch between two audio experiences: when NFB is on, the sound becomes more spacious and detailed, and when it is off, the sound is fuller and richer with a stronger bass presence.
- Finally, the Cayin C9ii supports multiple amplifier modes, including Class A/AB, single-ended, and balanced inputs and outputs, giving flexibility in how the amplifier is used.
Cayin C9ii Dual NuTube Portable Tube Headphone Amplifier Specifications | ||||||

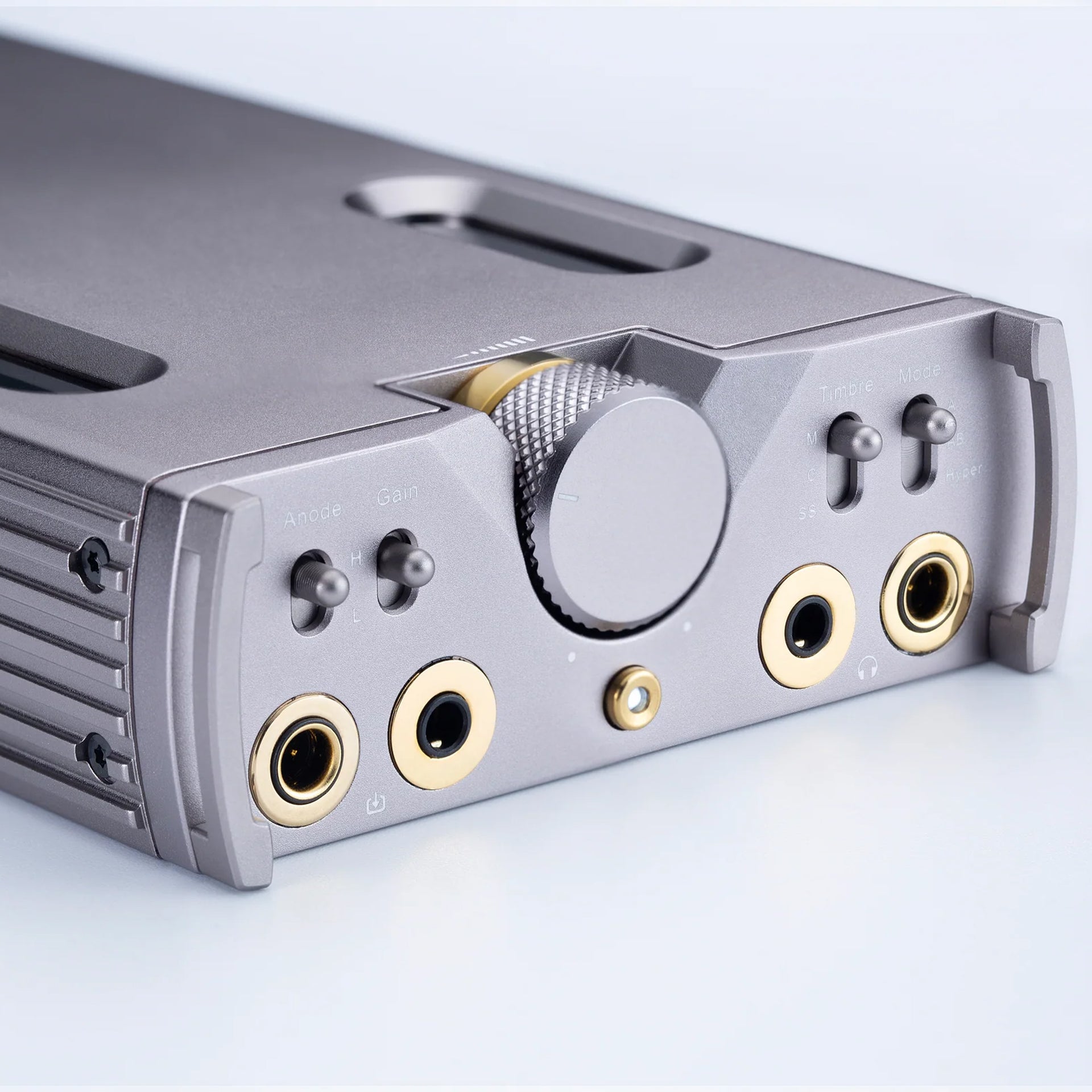

Input | 3.5mm TRS, 4.4mm TRRRS | |||||
Output | 3.5mm TRS, 4.4mm TRRRS | |||||

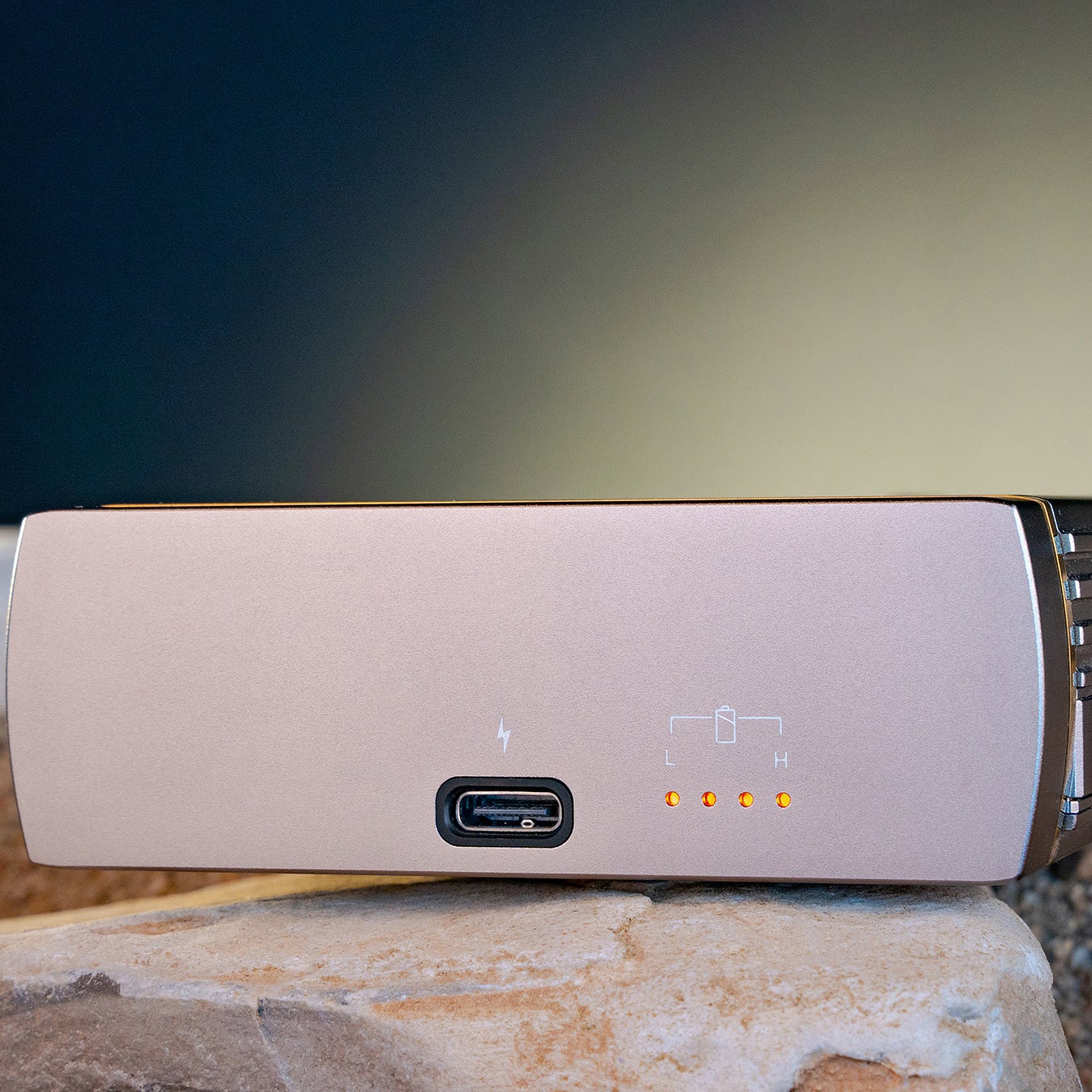

Charging | USB Type-C (QC3.0, PD2.0 9V 2A) | |||||
Dimension | 165 x 88.5 x 30 (mm) | |||||
Net Weight | 650g (±5g) | |||||

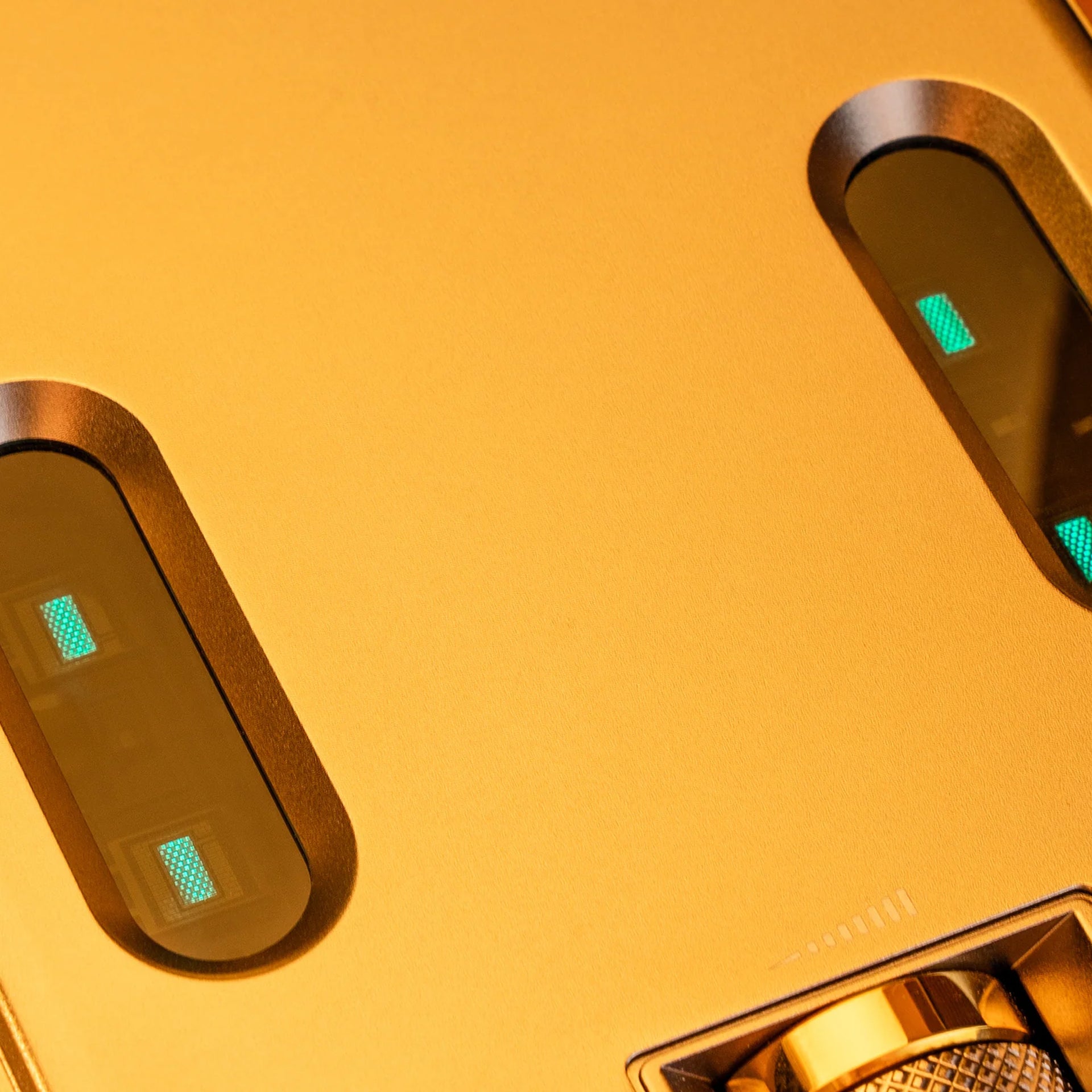

Timber Circuit (Tube) | KORG Nutube 6P1 x 2 | |||||
Timber Circuit (Solid State) | Toshiba 2SK209 JFET x 4 | |||||
Input Differential Amp. | LSK489 Dual JFET x 4 + LSJ689 Dual JFET x 4 | |||||
Electronic Volume Control | MUSES72320 x 2 | |||||

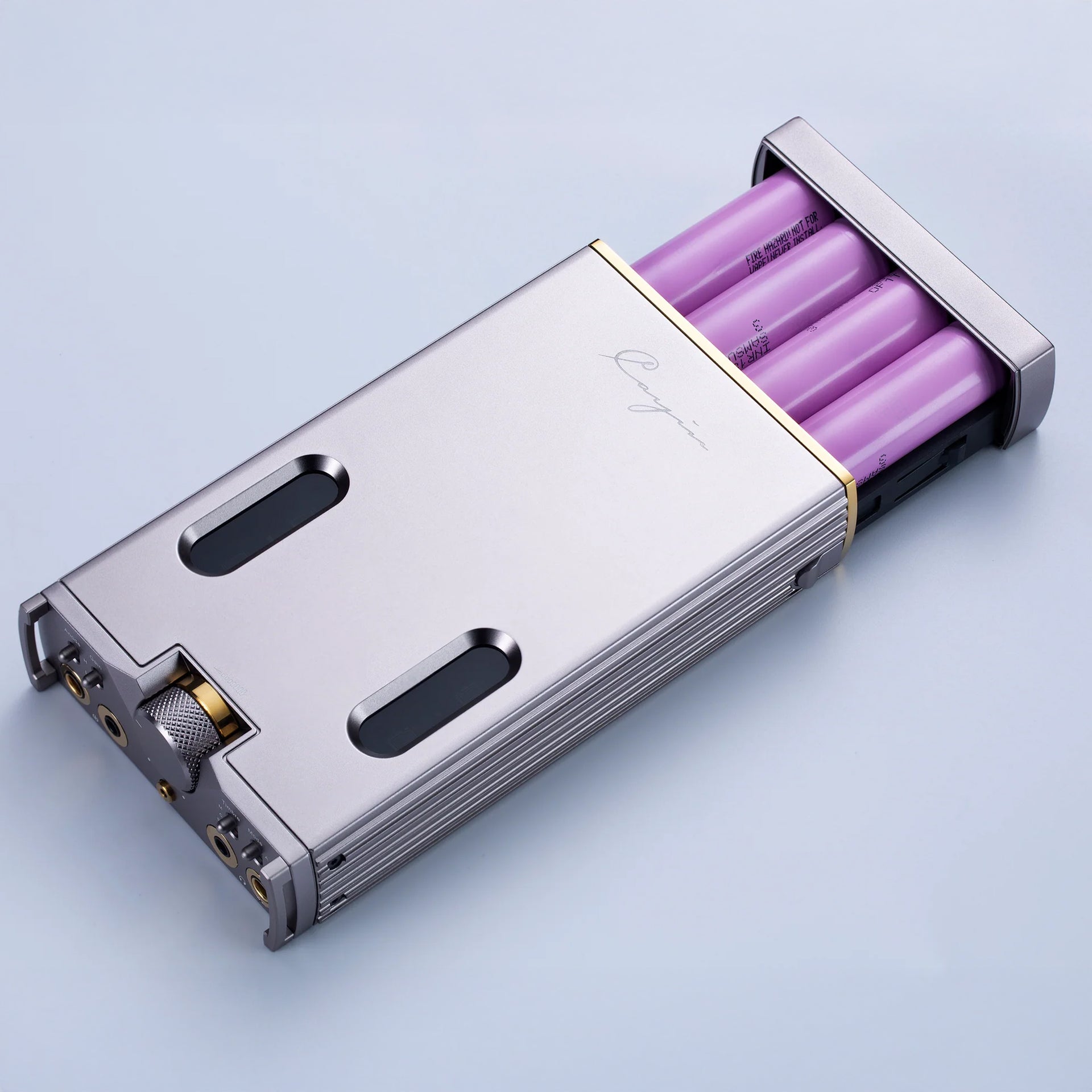

Battery | Samsung INR18650-35E (3400mAh) x 4 | |||||
Setting | Parameter | Test Condition | ||||
---|---|---|---|---|---|---|
Loading | 16Ω | 32Ω | 150Ω | 300Ω | ||
Power 3.5mm SE | Tube/Solid State | 1200mW | 700mW | 160mW | 80mW | High/Low Gain |
Power 4.4mm BAL | Tube/Solid State | 4100mW | 2600mW | 640mW | 320mW | High/Low Gain |
Freq. Response | Tube | 20Hz-80kHz(±0.5dB) | High/Low Gain | |||
Vacuum Tube | 11Hz-80kHz(±0.5dB) | High/Low Gain | ||||
Single-Ended / Balanced Conversion | SE>SE | BAL>SE | SE>BAL | BAL>BAL | Test Condition | |
THD+N | Solid state | 0.002% | 0.002% | 0.001% | 0.001% | @1kHz, 1Vrms, A-weighted |
Vacuum Tube | 0.030% | 0.015% | 0.060% | 0.007% | ||
Dynamic Range (High Gain) | Solid state | 121dB | 123dB | 121dB | 124dB | 20Hz~20kHz, High Gain, A-Weighted |
Vacuum Tube | 112dB | 116dB | 111dB | 115dB | ||
Dynamic Range (Low Gain) | Solid state | 125dB | 126dB | 125dB | 127dB | 20Hz~20kHz, High Gain, A-Weighted |
Vacuum Tube | 118dB | 120dB | 117dB | 120dB | ||
SNR (High Gain) | Solid state | 121dB | 123dB | 121dB | 125dB | 20Hz~20kHz, High Gain, A-Weighted |
Vacuum Tube | 112dB | 115dB | 111dB | 114dB | ||
SNR (Low Gain) | Solid state | 124dB | 125dB | 125dB | 126dB | 20Hz~20kHz, High Gain, A-Weighted |
Vacuum Tube | 118dB | 119dB | 117dB | 120dB | ||
Channel Separation | Solid state | 75dB | 97dB | 114dB | 20Hz~20kHz, High Gain, A-Weighted | |
Vacuum Tube | 75dB | 90dB | 110dB | |||
Input Sensitivity | Line In | 1.5V | 2.8V | 1.5V | 2.8V | High Gain |
3.0V | 5.6V | 3.0V | 5.6V | Low Gain | ||
Pre In | 2.1V | 3.8V | 2.1V | 3.6V | High Gain | |
4.2V | 7.5V | 4.2V | 7.2V | Low Gain | ||
Output Impedance | Tube/Solid State | ≤95mΩ | ≤190mΩ | High/Low Gain |
