JVC DLA-NZ500 4K Laser Projector Specifications | |
Device Type | 0.69-inch Native 4K D-ILA Device ×3 |
Native Resolution | 4096 × 2160 (4K) |
e-shift Technology | Not supported |
Display Resolution | 4096 × 2160 |
Light Source | BLU-Escent Laser Diode |
Brightness | 2,000 lumens |
Contrast Ratio | Dynamic: ∞:1 Native: 40,000:1 |
Colour Gamut | sRGB 100% |
Lens Type | Motorised Zoom & Focus (x1.6), Native 4K Lens |
Lens Diameter | 80 mm |
Lens Shift | Vertical: ±70% Horizontal: ±28% |
Projection Size | 60" – 200" (diagonal) |
HDMI Inputs | 2 (32 Gbps, HDCP 2.3, no CEC) |
Output Terminals | None |

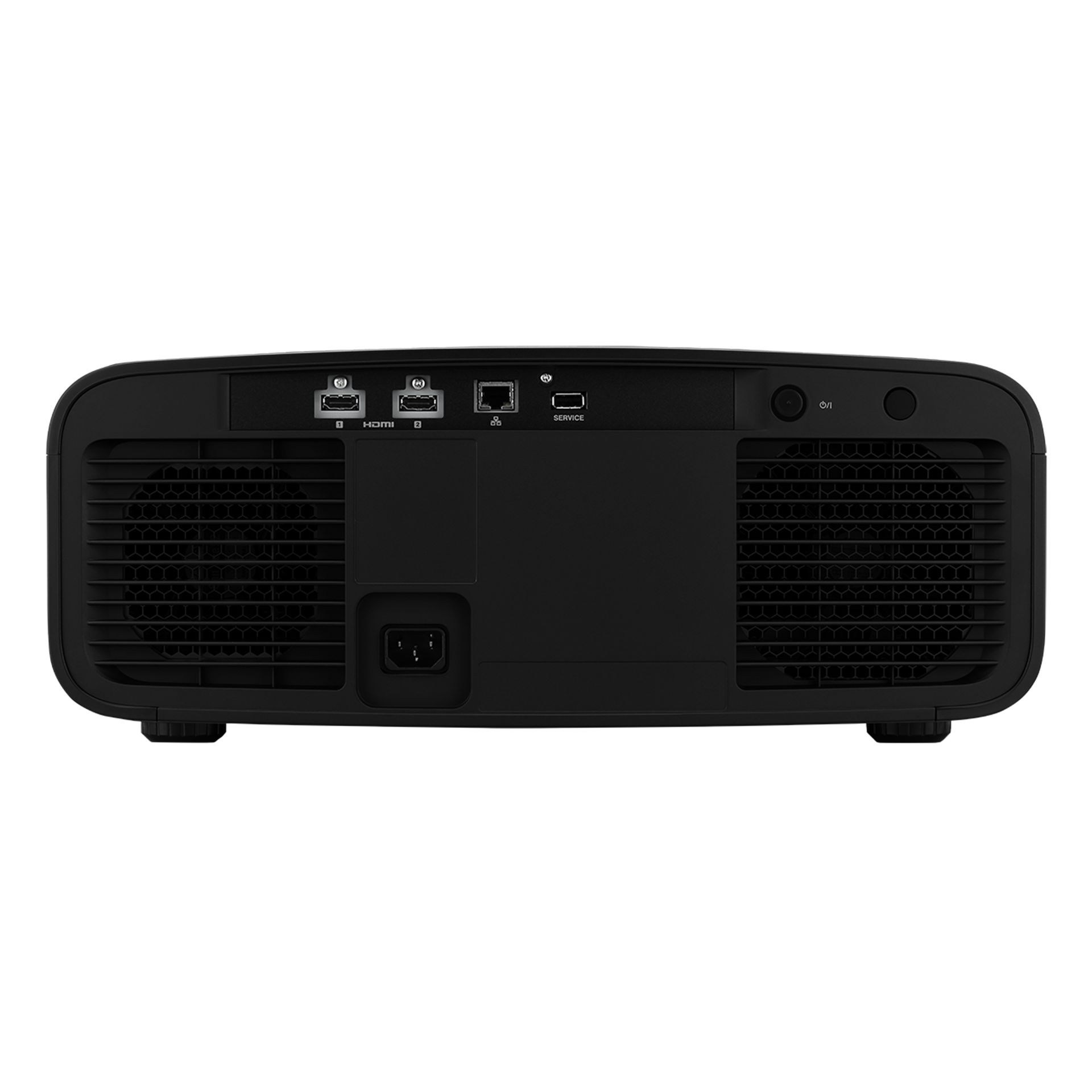

Control Terminals | LAN (RJ-45), SERVICE (USB Type-A) |
Video Signal Support | Up to 4K (4096×2160) 60Hz |
PC Input Format | Up to WQHD (2560×1440) |
3D Formats | Not supported |
Power Consumption | 280 W (in use) 0.3 W (eco standby) 1.5 W (LAN standby) |
Fan Noise | 23 dB (at minimum laser power) |
Power Requirement | AC 100–240 V, 50/60 Hz |
Dimensions (W×H×D) | 450 × 181 × 479 mm (17-23/32" × 7-5/32" × 18-7/8") |
Weight | 14.6 kg (32.2 lbs) |
