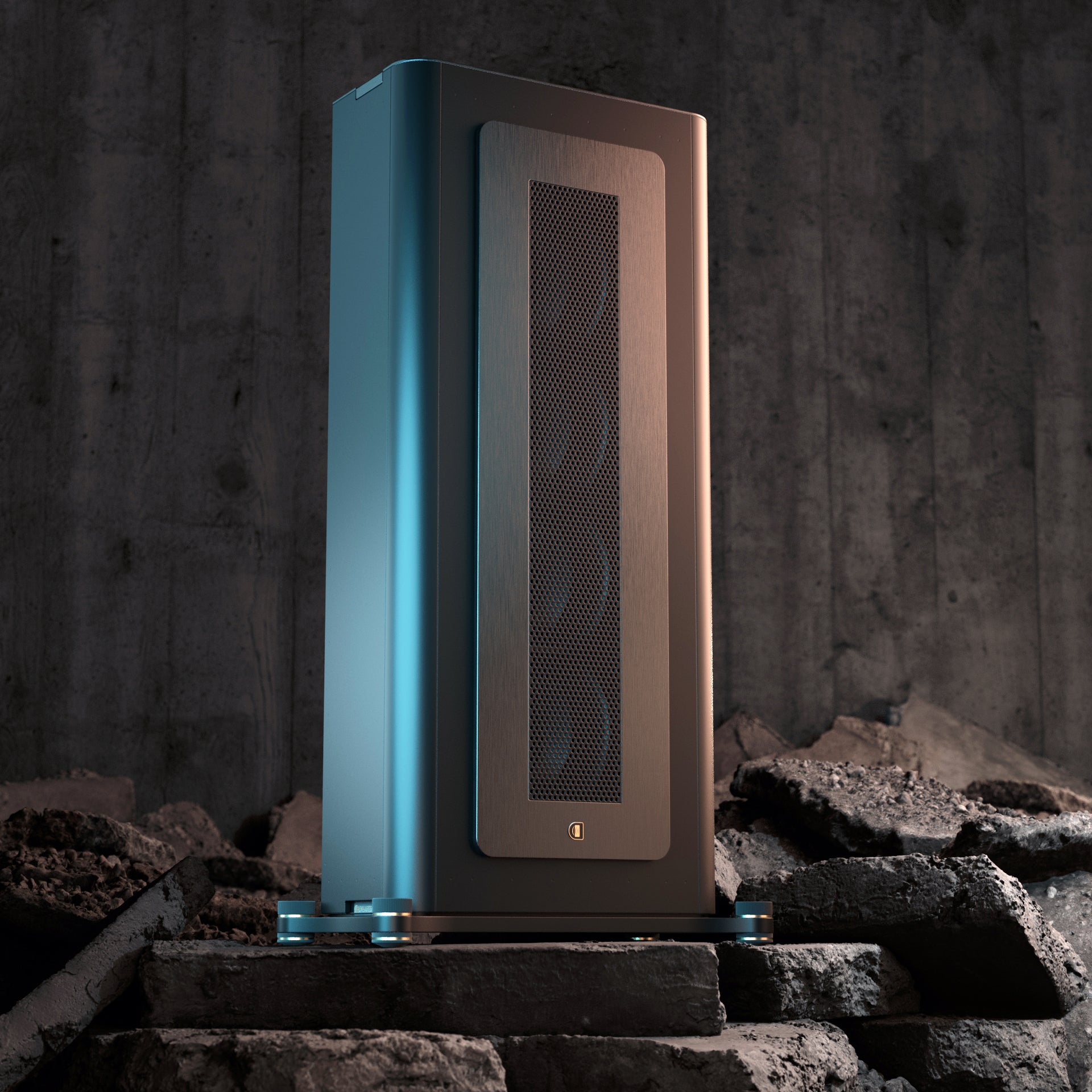

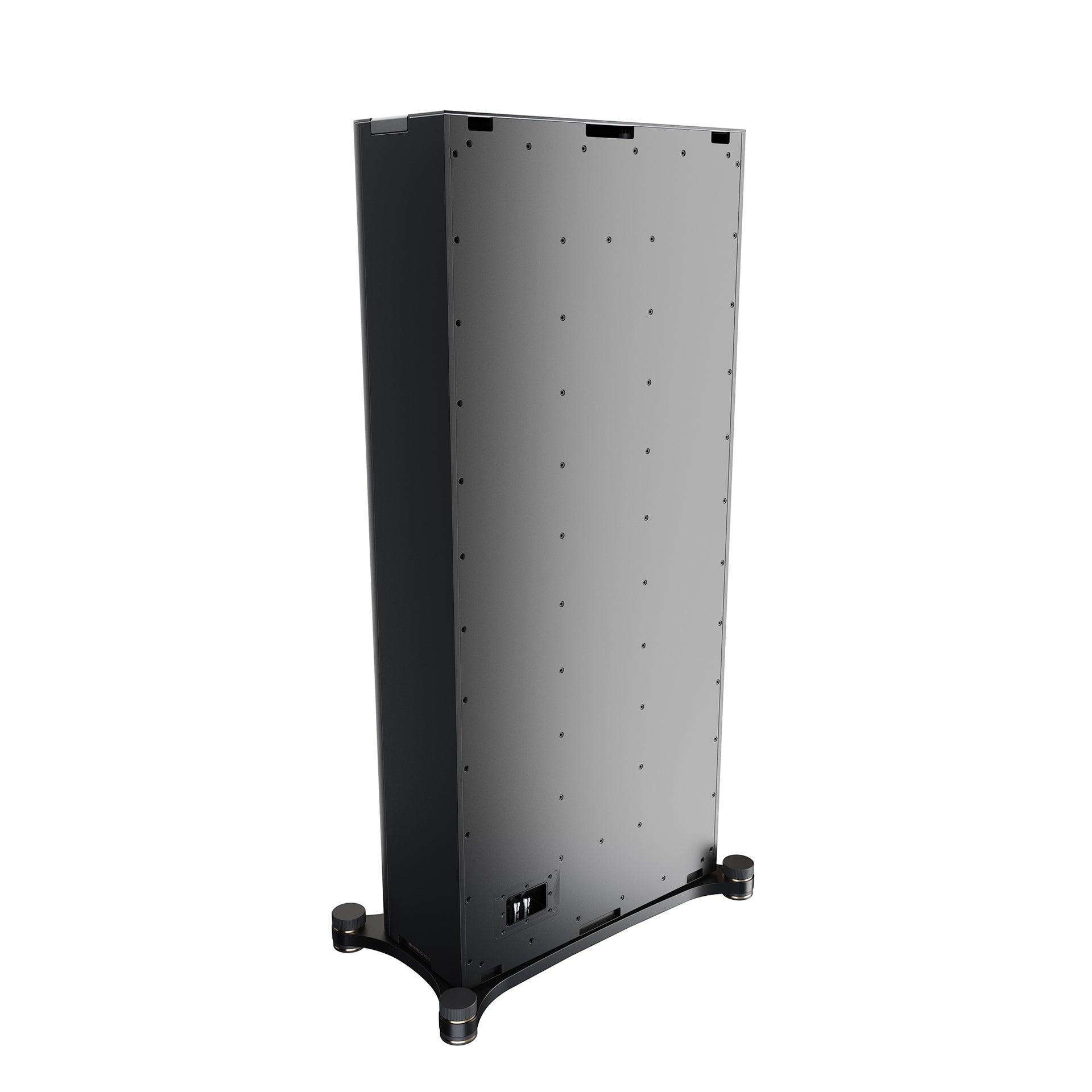

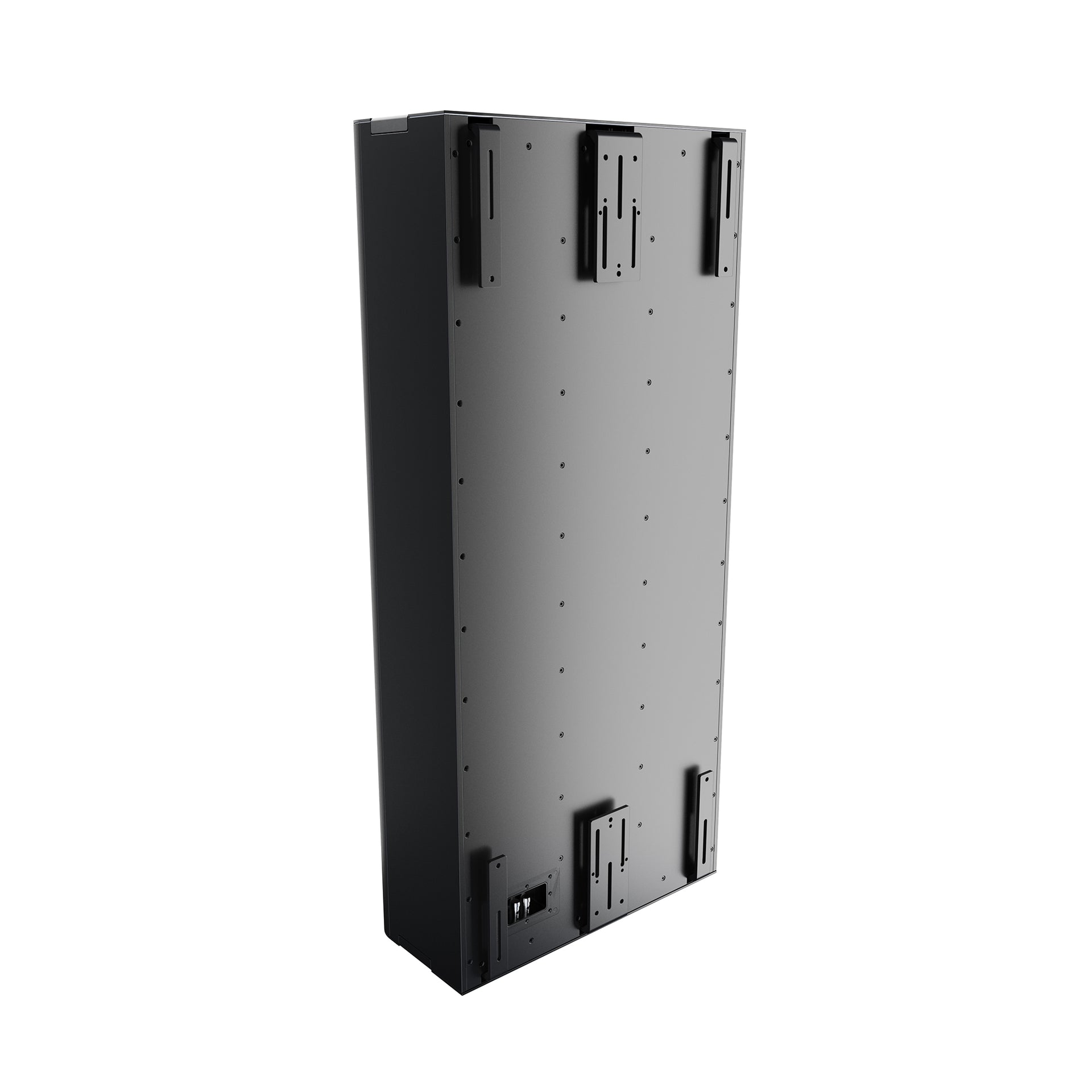

| Perlisten D8is Subwoofer Specifications | |
| Alignment | Acoustic Suspension |
| Amplifier Power | 3000W RMS |
| Display Interface | 2.8" LCD Color Touchscreen |
| App Control | iOS & Android |
| Processor | 32-bit ARM Cortex M4, Double Precision Floating Point Math |
| DSP Engine | TI DSP, 48-bit Data Paths |
| Driver Complement |
(8) × 215 mm (8.5") Carbon Fiber Diaphragm ±18.0 mm Linear Excursion |
| Reference Sensitivity | 97.0 dB / 150 mV / 1.0 m |
| Frequency Response (THX EQ) | 20 – 290 Hz (-6 dB) / 16 – 330 Hz (-10 dB) |
| Frequency Response (Boost – Large Room EQ) | 16 – 290 Hz (-6 dB) / 14 – 330 Hz (-10 dB) |
| Frequency Response (Cut – Small Room EQ) | 25 – 290 Hz (-6 dB) / 19 – 330 Hz (-10 dB) |
| Inputs |
(1) Balanced XLR (1) Unbalanced RCA |
| Outputs |
(1) Balanced XLR (Unbuffered) (1) Unbalanced RCA (Unbuffered) (1) Digital AES/EBU |
| Parametric EQ | 10-Band PEQ with 3 User Presets |
| Low Pass Filter | Bypass, 30 – 160 Hz Slopes: 6 / 12 / 18 / 24 dB per Octave |
| Phase | Variable 0 – 270° |
| Polarity | Normal / Inverted |
| Auto Turn-On & 12V Trigger | XLR, RCA |
| Subwoofer Dimensions (H × W × D) |
1137.6 × 508.0 × 238.6 mm (Without Brackets) 44.8 × 20.0 × 9.4" |
| Amplifier Dimensions (H × W × D) |
89.0 × 429.2 × 322.4 mm 3.5 × 16.9 × 12.7" |
| Net Weight (Subwoofer) | 103.8 kg (228.4 lbs) |
| Net Weight (Amplifier) | 6.1 kg (13.4 lbs) |
| Gross Weight (Packaged) | 191.1 kg (422.2 lbs) |
