This product is excluded from our free shipping offer due to its size and weight.
After you have placed your order, our team will calculate the best freight rate to your delivery address, and contact you with a delivery quote for your review and payment before finalising your shipment.
Please note that selected products and delivery locations may require the use of specialised direct courier services, which may attract higher freight costs.
| Schiit Audio Gjallarhorn F Power Amplifier Specifications | |
| Power Output | Stereo 8 Ohms: 10W RMS/channel Stereo 4 Ohms: 15W RMS/channel Mono 8 Ohms: 30W RMS |
| Frequency Response | 20Hz-20kHz, ±0.01dB 3Hz-500kHz, ±3dB |
| THD | <0.004%, 20Hz-20kHz, at 1V RMS into 8 ohms |
| IMD | <0.005%, CCIR, at 1V RMS into 8 ohms |
| SNR | >117dB, unweighted, ref full output |
| Damping Factor | >100 into 8 ohms, 20-20kHz |
| Gain | 10 (20dB) |
| Input Sensitivity | 9V RMS / 20 gain (user-calculated) |
| Input Impedance | 20k ohms SE 40k ohms balanced |
| Crosstalk | >80dB, 20-20kHz |

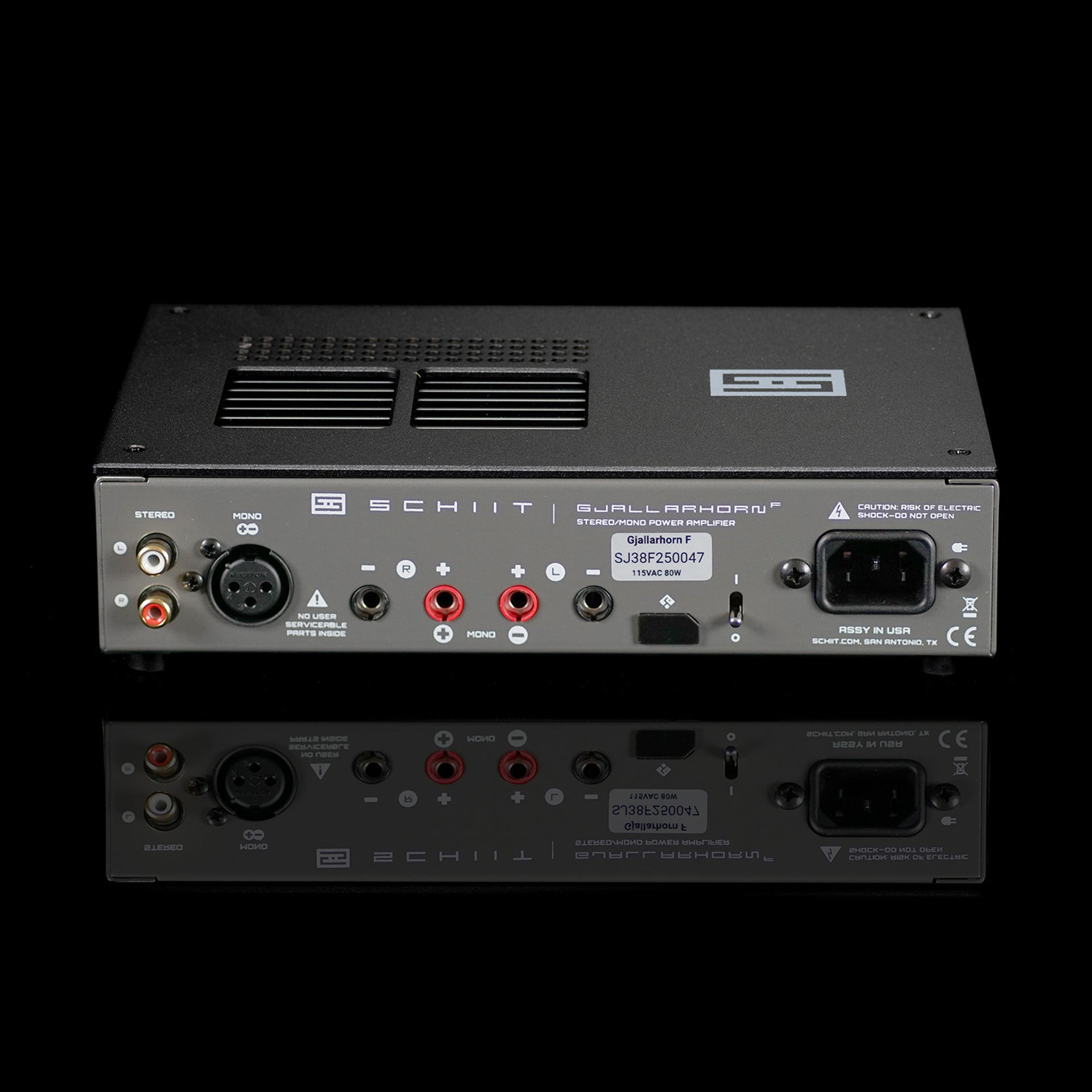

| Inputs | L/R RCA (stereo) Single XLR (mono) |
| Topology | Continuity S output stage, fully discrete, complementary current feedback, no capacitors in signal path |
| Protection | Over-current & over-temperature sensors, microprocessor-controlled |

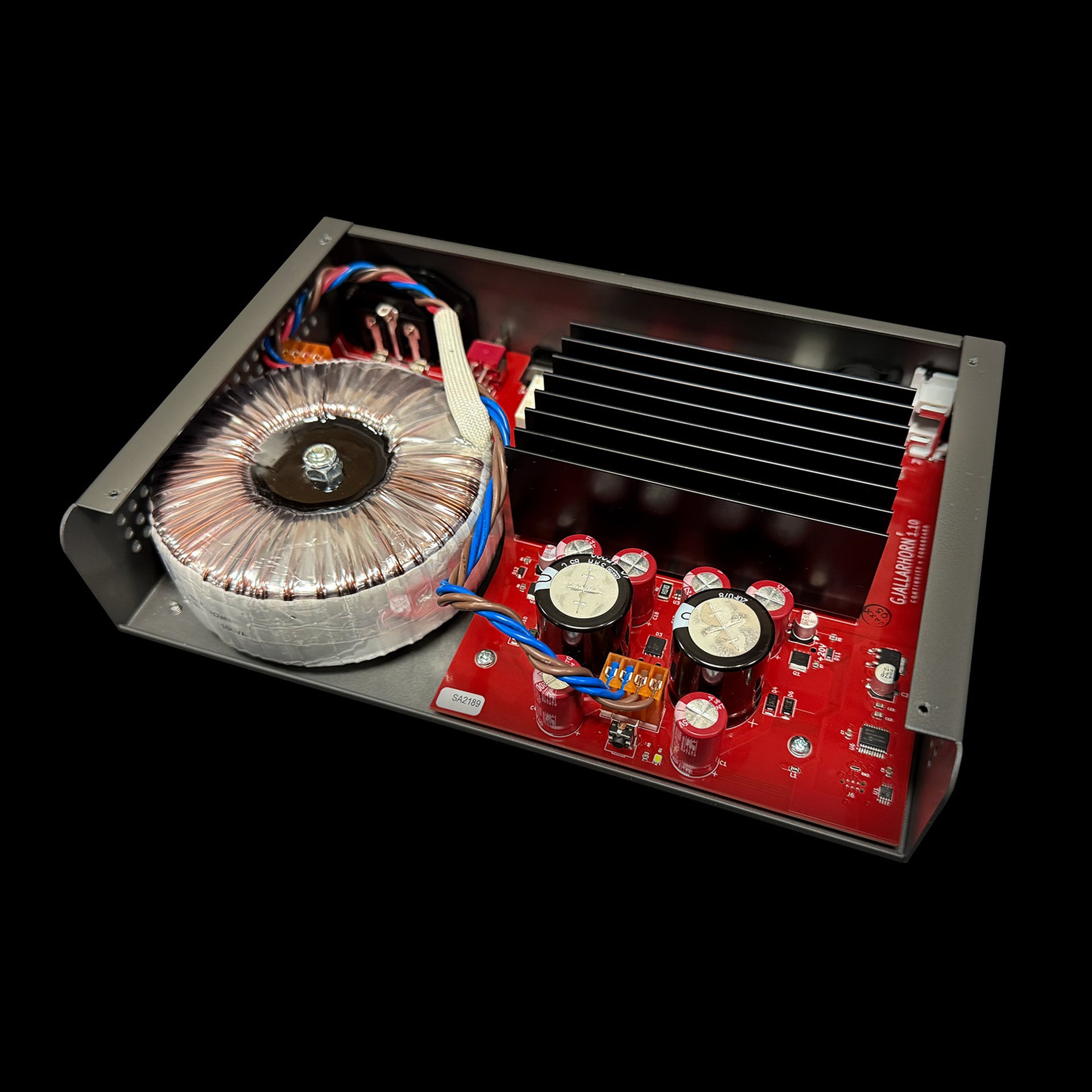

| Power Supply | 80VA transformer, 30,000uF filter capacitance, boosted CFP-regulated for input/gain/driver stages |
| Power Consumption | 80W maximum |
| Size | 9 x 6 x 2.5 inches |
| Weight | 8 lbs |
