Description

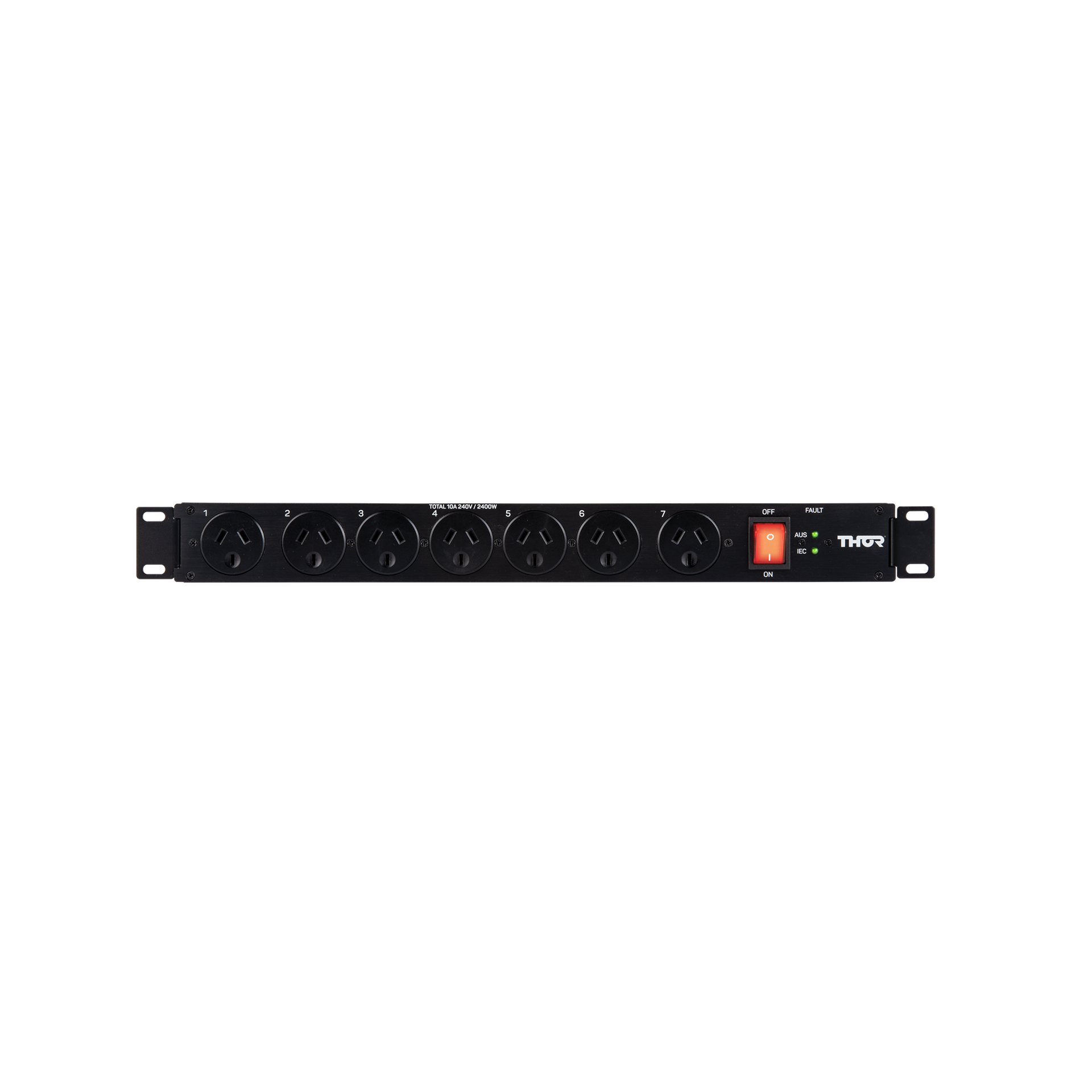

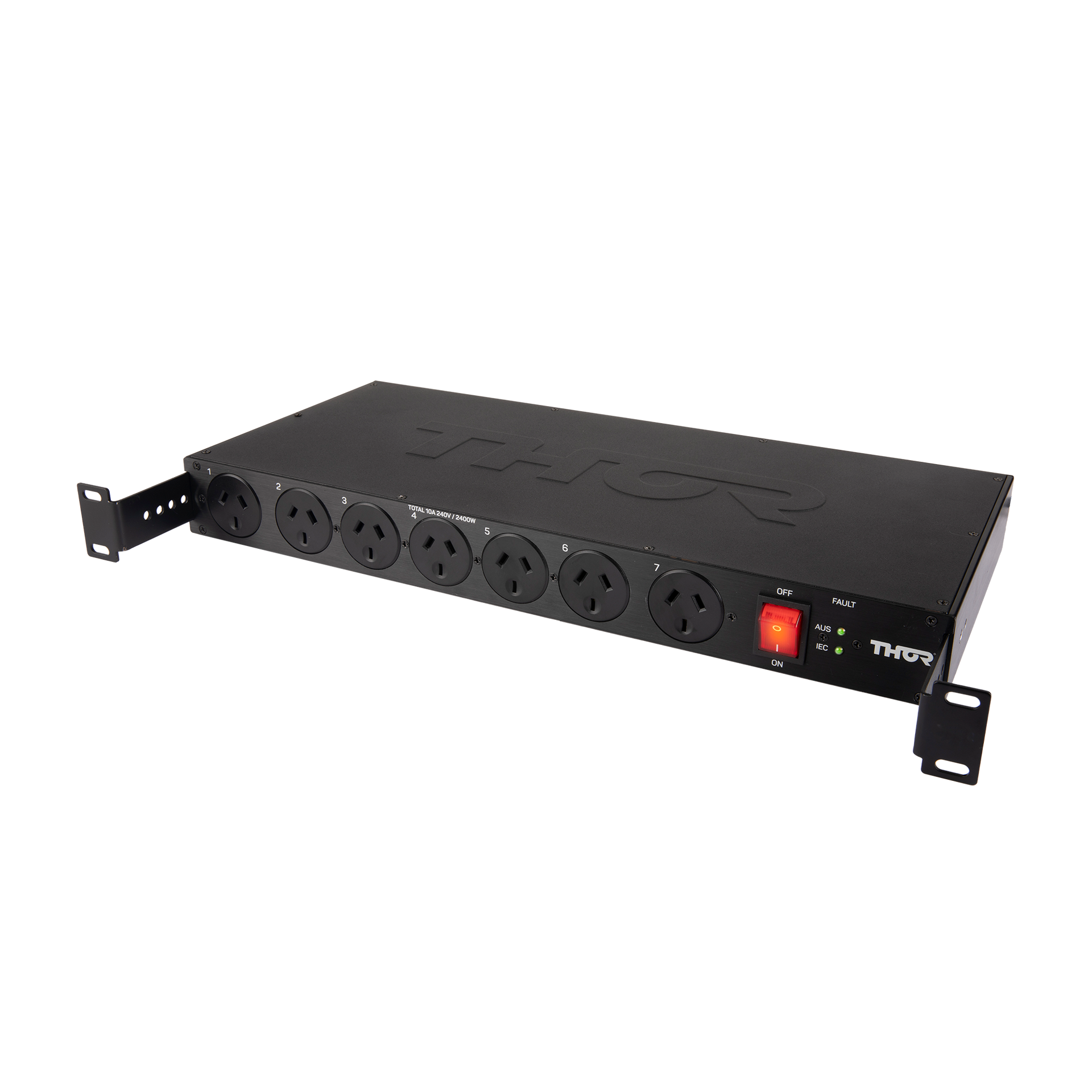

  • Rack-mountable 1U power board featuring 11 protected/filter outlets (7 front, 4 rear IEC) for AV and server rack setups.
  • Dual-circuit design offering both surge protection and advanced EMI/RFI noise filtration to maintain signal integrity.
  • Ultra-fast reaction time (under 1 nanosecond) and high energy dissipation (35,200+ equivalent rating) to guard against transient spikes.
  • Patented “non-sacrificial” surge protection circuit meaning the unit remains protected without trigger after one surge event.
  • LED status indicator for protection/OK, adjustable side-brackets for mounting flexibility, and a six-year replacement warranty.
THOR RF11P Smart Rack Guard 11 Power Filter Specifications
Product Dimensions 484mm (W) × 47.5mm (H) × 182mm (D)
Supply Voltage 240V AC 50Hz
Maximum Current Rating 10 amps / 2400W (VA)
Clamping / Let Through Voltage 300VAC
Reaction Speed Less than 1 nanosecond
Maximum Transient Spike Impulse Current 156,000 amps (Equivalent to 39,000 amps using UL1449 standard)
Maximum Energy Dissipation 3420 Joules (Equivalent to 1140 Joules using UL1449 standard)
Protection Modes Active/Neutral, Active/Earth, Neutral/Earth (all 11 outlets protect on all 3 conductors)
Noise Reduction Filter EMI/RFI (SmartBrain Passive)
Total Number of Protected & Filtered Outlets 11
Earth Potential Rise Protection Yes
Earth Leakage Range Less than 1 milliamp
Operating Conditions Indoor / AC Mains
Operating Temperatures -10°C to +60°C
Cable Length 2.0m
Circuit Design Dual Isolated Circuit
LED Warning Indicator Yes — alerts if surge protection is compromised
